CSV-3090H Wood Chipper Leaf Shredder Pro-Series 9 hp Gas Powered

Call 262.523.4580 to get help
or place an order by phone

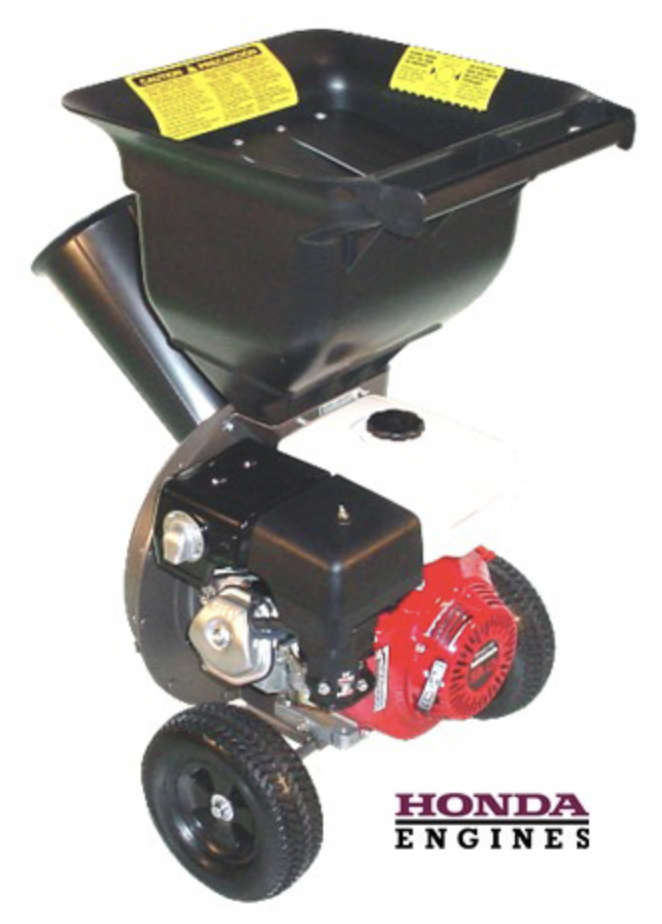

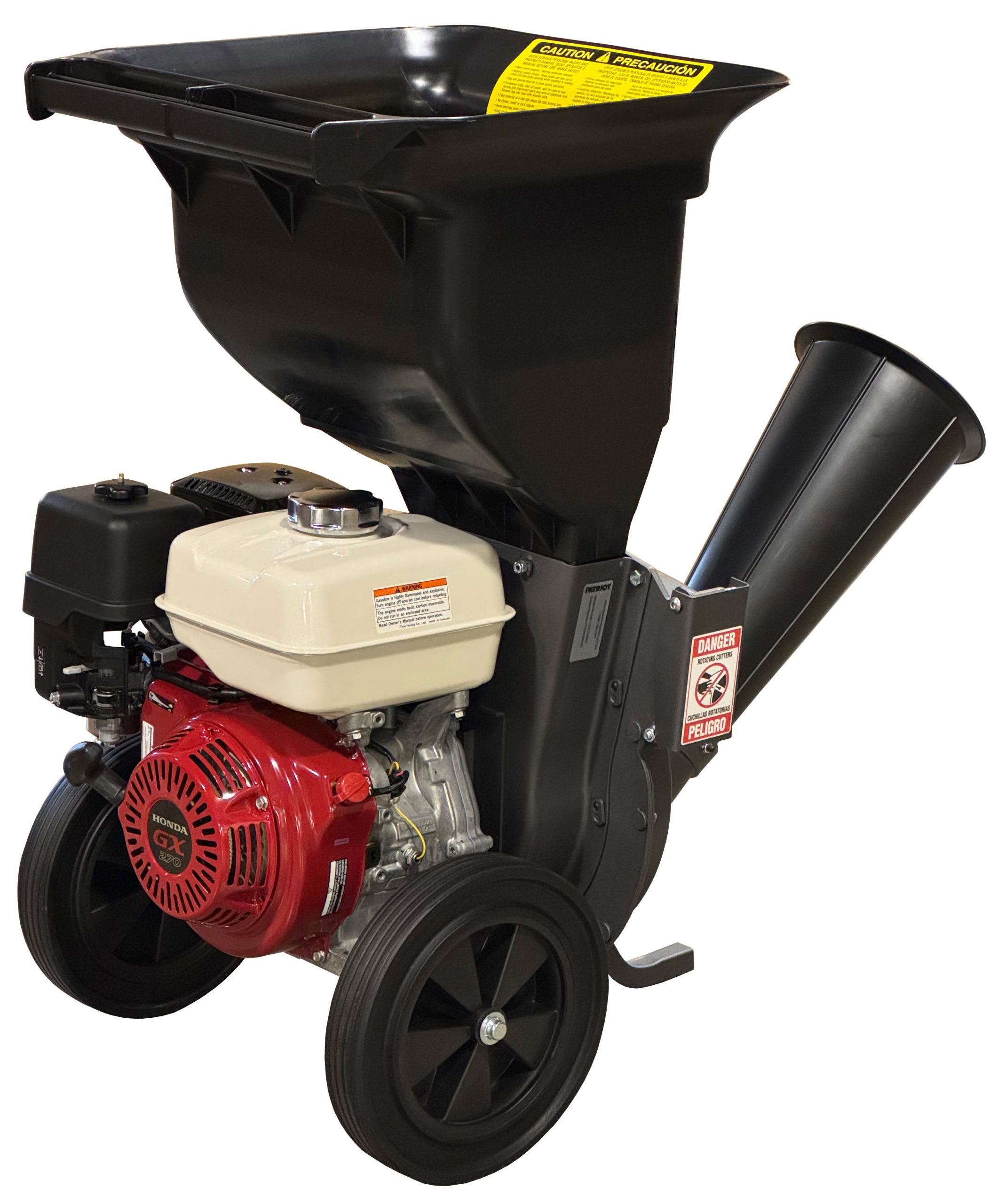

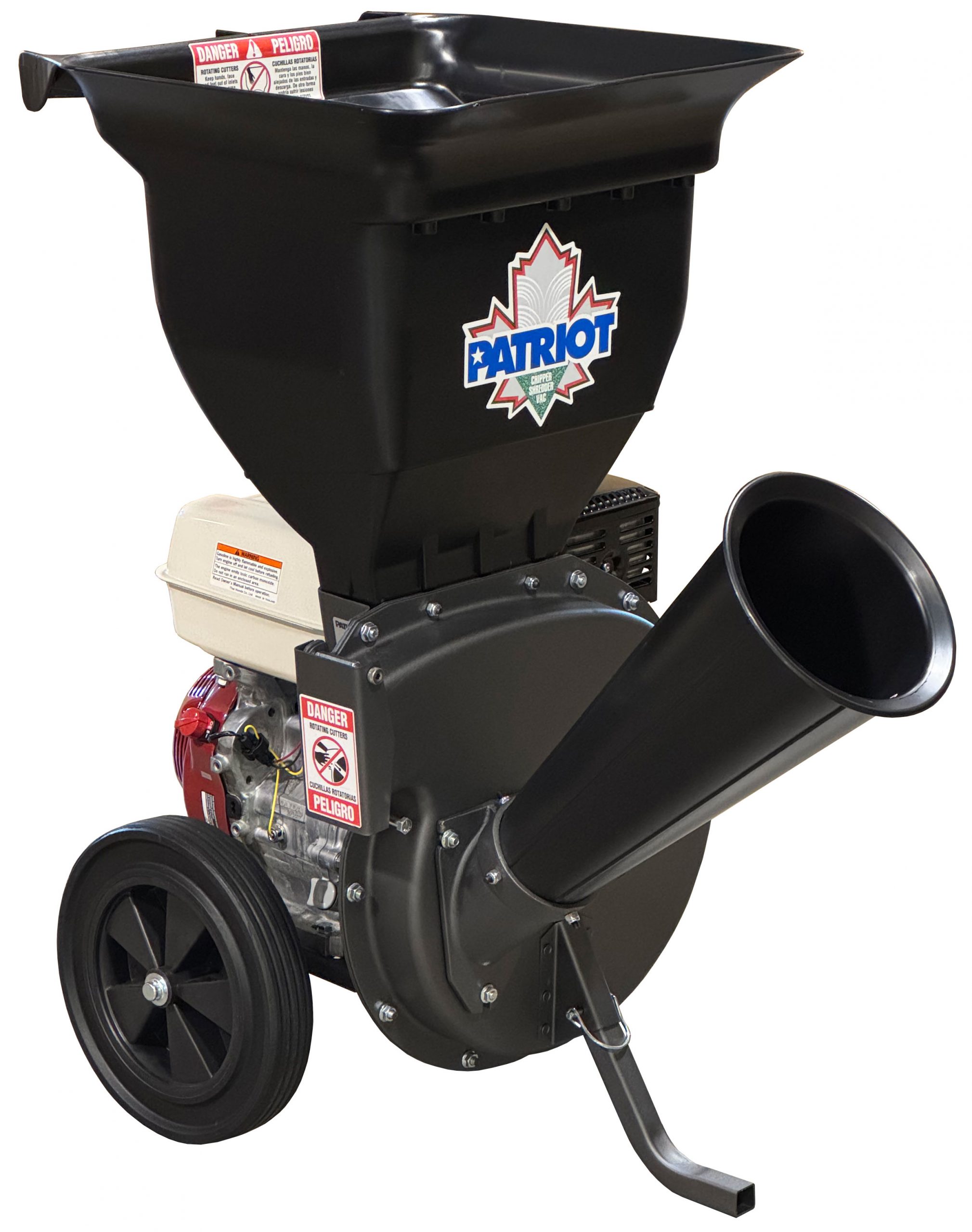

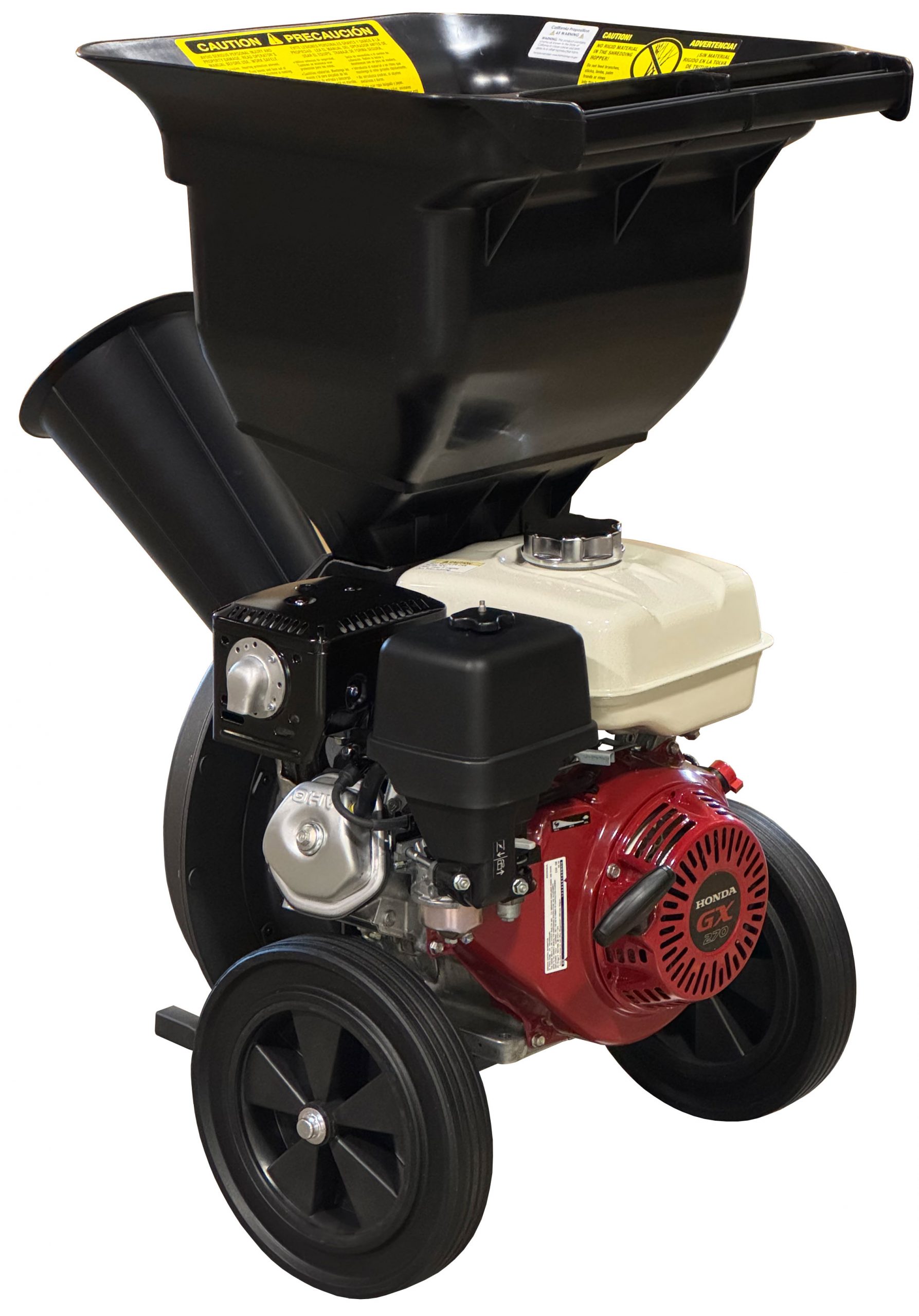

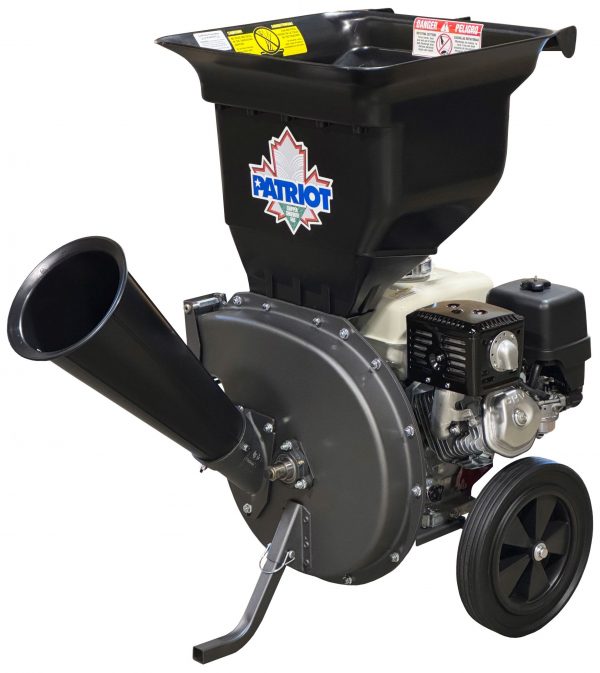

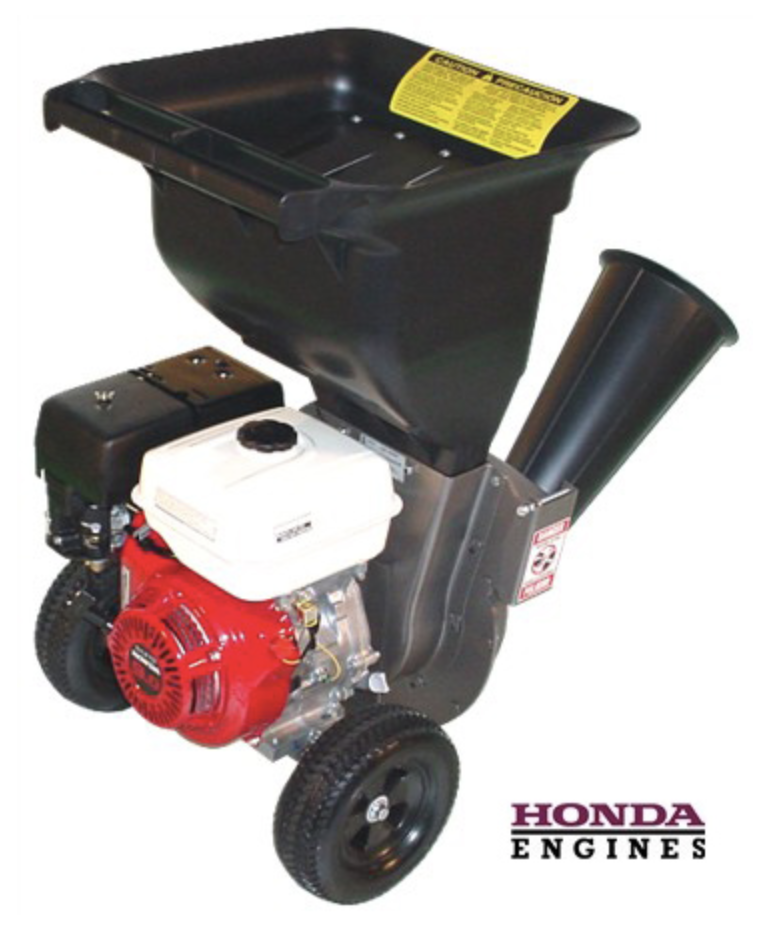

Patriot CSV-3090H

Click on Image to Enlarge

Click for additional views:
Commercial chipper
Portable shredder
Product Number: CSV-3090H
Product SKU: 794617201508
$1,899.00
Select Quantity:
Upgrade to the best wood chipper with a slick Honda engine and stand back.
  • 9 hp Honda GX series commercial grade gas engine
    THIS ENGINE IS 50 STATE COMPLIANT
  • Chips rigid materials such as branches up to 3 inches in diameter
  • Ultimate wood chipper for professional debris chipping
  • Extremely powerful, destroying branches, pine cones, and walnuts ferociously

Click below on the Recommended Accessories tab for CSV-3090H accessories
Click below on the Product Features tab for a basic product description
Click below on the Why Patriot tab for a detailed product description
Click below on the Chipper Reviews tab for CSV-3090H specific reviews
Click below on the Spare Parts tab for CSV-3090H specific parts

9 HP HondaBuy direct from Patriot, and try it for 90 days. If you are not satisfied, we will buy it back.
RECOMMENDED ACCESSORIES

Customers Also Bought

Chipper Buddy 888000227 $40.00
CSV cover 888000082 $69.00
Gator Grabber 500C 888000232 $49.95
Jumbo Size Leaf Collection Bag 888000100 $49.00
Parts kit, chipper knife, 3" 990000015 $75.00
Parts kit, y-hammer, gas 993090035 $85.00
Standard Size CSV Collection Bag 888000061 $39.00
Wood Chipper 3 Point Tow Bar Kit 888000064 $159.00

PRODUCT FEATURES

About This Product...

Patriot Model CSV-3090H
9 hp Gas Wood Chipper Leaf Shredder

Branch after branch, day after day, the CSV-3090H Wood Chipper Leaf Shredder brings strength and efficiency to the big jobs. This unit combines Honda’s smooth quiet power to Patriot’s rugged, heavy duty, tri-plated rotor. This combination gives you low oil shutdown, semi-pneumatic tires, and 3 inch diameter chipping capacity. Patriot’s triple-layered rotor is laminated for greater strength. A greasable outboard bearing supports the rotor, taking the load off the engine shaft for longer life and smoother running. If you like Honda’s reliability and like to tackle the really big jobs this is your machine. This unit weighs 149 lbs and will chip all day long.

Click above on the WHY PATRIOT tab to see detailed product information
and why you should buy a Patriot
See video of Patriot products in action

Click here to see Patriot chipper shredder output samples
Part No. Description - Click below on the product descriptions to see product details or to order Price
CSV-3090H Patriot Model CSV-3090H Gas Wood Chipper Leaf Shredder $1899.00
RECOMMENDED ACCESSORIES
888000227 Patriot CSV Chipper Buddy $40.00
OTHER POPULAR ACCESSORIES
888000061 Spare "Standard" CSV Collection Bag $39.00
888000100 "Jumbo" CSV Leaf Collection Bag $49.00
888000232 Gator Grabber $49.95
888000082 CSV Cover $69.00
888000064 CSV Tow Bar $159.00
RECOMMENDED SPARE PARTS
990000015 Spare Chipper Knife Kit For CSV-3090H $75.00
993090035 Spare Shredding Y-hammers Kit For CSV-3090H $82.50
$1,899.00
WHY PATRIOT

Why Buy a CSV-3090H

Is this the right model for you?

The CSV-3090H is our top-of-the-line chipper. Our model CSV-3090H is ideally suited for the "heavily wooded lot" property owner (over 1 acre) or for light commercial applications such as a small landscaper or rental center where the primary intent is to use this machine to chip up larger volumes of branches (up to 3" in diameter) and to shred up leaves and other vegetative matter generated during routine yard maintenance. The construction of the CSV-3090H is similar to that of the CSV-3100B. However, there are two key differences in the rotor and the engine that are detailed below.

Why Buy A Patriot?

Easy to Load Shredding Hopper

Patriot Products Model CSV-3090H Gas Wood Chipper Leaf Shredder Hopper

Patriot's CSV-3090H has a large hopper to allow easy loading of leaves and vegetative material into the machine for shredding. The opening at the top of the hopper is 16" long and 14" wide so you can easily deposit debris for processing.

See video of Patriot's products in action

Just for reference, the opening at the base of the hopper narrows to 7" long x 2" wide. So if you were hoping to shred whole coconuts or grapefruit, this isn't the machine for you.

Tapered Chipping Cone

Patriot Products Model CSV-3090H Gas Wood Chipper Leaf Shredder Cone

Patriot's CSV-3090H has a tapered chipping cone that makes it easy to feed rigid materials such as branches and sunflower or corn stalks into the chipper. The opening at the top of the cone is 7" in diameter so you can easily deposit debris for processing without pruning them down to perfectly straight pieces with no offshoots.

See video of Patriot's products in action

The opening at the base of the cone limits the diameter of materials to be chipped to 3".

Tri-Plate Rotor

Now that your yard waste has safely entered our CSV-3090H wood chipper leaf shredder it meets a formidable opponent, the rotor. Weighing in at just over 27 pounds and measuring roughly 14" in diameter, this is where things happen!

Patriot Products Model CSV-3090H Gas Wood Chipper Leaf Shredder Rotor

In this photo you see the front of the rotor and this unit's two chipping knives (painted blue here for ease of identification). Patriot's chipping knives are made of high quality tool steel, selected for its toughness, and are heat treated for wear resistance. Spinning past the end of the chipping cone the chipping knife is ready, willing, and able to turn your freshly pruned branches into coin-sized chips that make great mulch. These knives can reduce the volume of your freshly pruned branches by as much as 20:1. To sharpen the knives, simply remove the 3 nuts that attach the chipper cone to the housing and the 2 screws that attach each of the knives to the rotor. Sharpen using a simple wet stone or high quality file.

Click here to see Patriot chipper shredder output samples
Patriot Products Standard Gas Wood Chipper Leaf Shredder Rotor Profile
Standard Gas Rotor Profile
Patriot Products Tri-plate Gas Wood Chipper Leaf Shredder Rotor Profile
Tri-plate Gas Rotor Profile

At first glance, this appears to be the same rotor that is found in the CSV-3065B and CSV-3100B. However, upon closer inspection, you'll see that there is an extra layer of steel where the chipping knives are attached to the rotor.

The reason for this extra layer of material is that the CSV-3090H is often used in situations, such as small landscapers and rental centers, where the person operating the machine isn't the same one that paid for it. Combine that fact with a time constraint to get the job done and you get an interesting phenomena occurring. If the knives become dull in the middle of the project, the operator will choose to simply push harder on the branches rather than stop and sharpen the knives. The tri-plate rotor's design stiffens the front of the rotor in an attempt to prevent damage to the rotor caused by this type of misuse.

An additional benefit of the extra material is that it increases the weight and momentum of the rotor which translates into faster and smoother chipping.

It merits taking a moment here to point out that any wood chipper that uses chipping knives is designed to process FRESHLY CUT BRANCHES. The chipping knives are able to slice through this fresh material which makes for smoother, faster, easier chipping. We realize that everyone gets the occasional dead branch that falls out of a tree that needs to be chipped and the unit can handle those occasionally branches. However, you will be sorely disappointed if you are intending to purchase this chipper to get rid of that mountain of nearly petrified wood that your spouse has been nagging you about for years.

Patriot Products Model CSV-3090H Gas Wood Chipper Leaf Shredder Rotor

While the chipper knives do their job with a touch of finesse, the y-hammers (painted blue here for ease of identification) are the bullies of the chipper shredder rotor. These six thick, heavy, hardened pieces of steel will beat and tear apart material dropped in the hopper. Dried leaves will be pulverized and slightly greener materials will be beat to a pulp. Working together, the y-hammers provide a volume reduction of about 8:1 for leaves.

Click here to see Patriot chipper shredder output samples

Commercial Grade Power Source

Patriot Products Model CSV-3090H Gas Wood Chipper Leaf Shredder Engine

The CSV-3090H has a powerful 9 hp Honda GX series commercial grade engine that allows you to chip a 3 inch diameter branch into tiny coin-sized chips. Don't be fooled by the "implied" one horsepower difference between the CSV-3090H and the CSV-3100B. Run side-by-side there's no way you'd say the CSV-3090H has less power. It's reliability and performance are why it's the number one choice of rental centers, professional landscapers, and municipal work crews. It is designed to run all day long.

Greasable Outboard Bearing

Patriot Products Model CSV-3090H Gas Wood Chipper Leaf Shredder Bearing

The greasable outboard bearing is one of the key features in the success of Patriot's direct drive chipper shredder design. The bearing supports the outer end of the rotor shaft and takes a significant amount of weight and stress off of the engine shaft. Less stress on the engine shaft translates into smoother chipping and longer engine life.

Direct Drive

Thanks to the use of our outboard bearing, Patriot is able to attach the rotor directly to the engine shaft. Most importantly this means more power! By not transferring power between belts and pulleys we do not lose power between the engine and the rotor. This also translates into no belts to break, fewer parts, less weight, and a more compact design.

Compact Size

Patriot's chipper shredder design is very compact. At 24" wide, 35" long, and 37" high, the unit requires little more space in your garage than a typical garbage can. The Patriot CSV is also small enough to fit into common vehicles such as mini vans and SUVs.

Light Weight

Weighing only 149 pounds the Patriot chipper shredder is one of the lightest units available. This makes the unit much easier to maneuver around your property or load into a vehicle for transport.

Side Discharge

Patriot's chippers discharge processed material out of a side discharge on the unit. Use the convenient standard collection bag provided to collect the processed material and carry it to the location of your choice. If you prefer, the airflow through our unit will allow you to discharge the material a few feet away from the machine such as into a tree line.

Most of our competitors simply discharged the processed material into a pile on the ground at the base of the unit requiring it to be collected and moved in a separate operation.

Standard Collection Bag Included

Patriot provides a standard collection bag with all of its chipper shredders. This makes cleanup a breeze and allows you to easily transport the material you've processed.

Most of our competitors make you purchase a collection bag as an accessory, if they even offer one.

No Screens Required

Patriot's chipper shredders turn your yard waste into fine mulch or composting material without the use of messy screens. This means no extra parts to keep track of and no screens to get clogged.

Click here to see Patriot chipper shredder output samples

Need Another Opinion?

Sure we're a little biased about how great this unit is, but don't just take our word for it.

Click here to review ALL of Patriot's customer reviews and testimonials

Minimal Assembly Required

Our products are designed with the average homeowner in mind. The CSV-3090H ships via UPS Ground in two packages. The first package contains the factory assembled lower mechanical portion of the unit. For shipping purposes, the shredder hopper and chipper cone are shipped separately. There are only a few screws and nuts to install to finish assembling your unit. Assembly is very simple and typically takes 15 to 30 minutes. Detailed instructions are provided.

Generous Warranty and Patriot's Promise

Patriot's goal is to provide top-notch products and back them up with a generous warranty and superior customer service. The CSV-3090H comes with a 3-year warranty for residential use. If you purchase a product factory direct from Patriot Products, Inc. you may return it for a full refund within 90 days if you are not completely satisfied.

Click here for additional details

Service/Warranty Repair

Because our products are designed with the average homeowner in mind, you can typically handle the routine maintenance of the machine without the need to take it somewhere for service.

If you need assistance servicing the machine or in the unlikely event that you need a warranty repair, the best thing to do is contact us first. While we have dealers and service centers that are familiar with our products, we can work with you to find a reputable outdoor power equipment center close to you that can service your product.

Still Have Questions?

Don't despair, call us at 1-800-798-2447 or email us at info@patriot-products-inc.com

We want you to have all of the facts so that you purchase the product that is right for you.

Part No. Description - Click below on the product descriptions to see product details or to order Price
CSV-3090H Patriot Model CSV-3090H Gas Wood Chipper Leaf Shredder $1899.00
RECOMMENDED ACCESSORIES
888000227 Patriot CSV Chipper Buddy $40.00
OTHER POPULAR ACCESSORIES
888000061 Spare "Standard" CSV Collection Bag $39.00
888000100 "Jumbo" CSV Leaf Collection Bag $49.00
888000232 Gator Grabber $49.95
888000082 CSV Cover $69.00
888000064 CSV Tow Bar $159.00
RECOMMENDED SPARE PARTS
990000015 Spare Chipper Knife Kit For CSV-3090H $75.00
993090035 Spare Shredding Y-hammers Kit For CSV-3090H $82.50
$1,899.00
CHIPPER REVIEWS

Reviews for CSV-3090H

Click here to review ALL of Patriot's customer reviews and testimonials

CSV-3090H - 4 out of 5 stars - Patriot Customer Review - Posted 03/08/15

Honda engine: excellent; starts easily, no repairs, oil changes only in many years

Chip/Shredder: very good. Would be excellent except; 1. debris catches where plastic chute meets bottom (exit side), sometimes jams in under edge, hard to remove 2. plastic "guard flap" on top wore out quickly, just hangs in & does nothing 3. diss-assembly to sharpen chipper blade is way to complex! Big job for me, & haven't found a repair shop nearby that will do it....

4. Maybe not really a design fault, but here in the PNW, we often have no chance to shred dry leaves; shredded wet leaves (no matter HOW slowly you feed them) will gradually plug the outlet, so you have to shut down to clear & or (if caught in time) run water thru it pretty often

FYI: I have a suburban yard with many trees. Also chip fo a neighbor's similar yard debris. Yard debris pick up is of insufficient volume and is costly. Thank you for your product.
By Lance, Battle Ground, WA

CSV-3090H - 4 out of 5 stars - Patriot Customer Review - Posted 02/21/15

Overall I am very happy with the Chipper Shredder, prior to this I had multiple problems with a Troy Built system from Lowes.

I am pleased to say that this unit starts and runs every time it seems to shred everything I throw at it, it does take a little training to learn how to feed each type of material, Branches, Leaves etc, but once mastered it completes what I need in short time.
By Stephen, Folsom, CA

CSV-3090H - 5 out of 5 stars - Patriot Customer Review - Posted 02/21/15

-that the screws on the blades seize up and you sometimes have to drill them out

-when you feed a max diameter piece, hang on and yet be ready to let go so you don't get sucked in too...great power!

-recommendation of some spare parts to have on hand.

-that the chipper/shredder is so good that the neighbors want to use it

-don't feed too many pine/spruce boughs at one time.

-thought the chips would have been larger.

-customer service after purchase was excellent.
By Rod, Beaver Cove, NS Canada

CSV-3090H - 4 out of 5 stars - Amazon Customer Review - Posted 09/14/14

I have put more than 80 hours on this unit and, overall, I am very pleased. The way that it makes branches "go away" by turning them into chips is "magic".
Here are my "Pros" and "Cons":
PROS
- The unit always starts with one pull. This is great for an older-timer like me.
- Some have commented that the unit bogs down with larger branches. It does, but some decrease in RPM is expected as the feed speed increases or the branch diameter exceeds one inch. Although you can feed a three-inch branch through the unit, you really must be reasonable concerning performance expectations for a unit of this size. For its size, it works just fine.
CONS
- Blade hardness could be improved. It was not defined within the literature that I received; however, you really need to resharpen the blades after 4 hours of use. If you have to chip Manzanita, the blades dull more quickly, so plan to chip these at the end of the day so that the blades stay sharp and feed rates are maintained. If you have to push the branches into the unit, the blades need sharpening.
I developed a fixture that I used to sharpen the blades using a one-inch vertical belt sander, and this maintains the correct cutting angle and lengthens blade life.
- I experienced a failure with the Rotor Tri-Plate. The welds around the center shaft were poorly executed and eventually failed.
I contact the manufacturer and was very displeased with his response and overall technical competency. Even after I sent him pictures revealing the poorly applied and incomplete weld, he still indicated that I must have been mistreating the unit and that the weld was not at fault.
I ended up buying a new Tri-Plate for $335 and receiving two sets of replacement blades. As a side note, the new Tri-Plate exhibited complete and very robust welds, must more substantial than the unit I received.
I expect that the manufacturer has either adjusted their welding techniques or increased their quality control. Regardless, the whole experience did not reflect the response I expected based on the overall quality of the chipper.
- I have an engineering background and I like to tinker. When I installed the new Tri-Plate, I measured the runout near the edge of the Tri-Plate with a dial indicator. The variation was almost 1/8 of an inch. So, this plate, at high revolutions, was creating a lot of vibration due to the imbalance that this "wobble" produced.
To improve this condition, I created a fixture where I could adjust the the surface positioning around the circumference of the Plate to reduce the runout. I was able to reduce the variation to about 0.015 of an inch. This adjustment reduced the overall vibration of the unit and actually improve feed rate and cutting performance because both blades were addressing the feed material from a similar position.
I suggest that the manufacture develop a more accurate fixture for welding the center shaft, and then make final adjustments to the Tri-Plate surfaces after the welds have cooled. This will reduce the amount of runout, lengthen the Tri-Plate service life, and improve chipping performance levels.
By Joe, Danville, CA

CSV-3090H - 4 out of 5 stars - Amazon Customer Review - Posted 08/13/14

I purchased this unit in 2011 to make better use of the piles of shrub and tree trimmings I create each year from my property upkeep. The well written instructions allowed me to assemble the unit with no problems. Pros: The engine starts well. It does a nice job of chipping brush and small limbs. Cons: In shredding leaves I found it bogs down easily, necessitating a slow feeding process. For limbs, I spend a lot of time pre-trimming to ensure the pieces will fit. The unit is noisy - ear protection is a must. I would recommend getting the tow attachment as moving it on 'rough' ground is otherwise difficult. Pay particular attention to the instructions on how to be a happy chipper. Despite the longer "Con" list for me, I still give this product 4 stars as it is well constructed and performed as designed. For my application, I believe I really needed a bigger chipper.
By Sandy, Shirley, IN

CSV-3090H - 5 out of 5 stars - Amazon Customer Review - Posted 08/03/14

Engine starts right up no problems, chips and shreds everything I give it. Makes the best mulch available. Only problem I have is putting gas in the tank.
By Diana, Rifle, CO

CSV-3090H - 5 out of 5 stars - Amazon Customer Review - Posted 07/29/14

This is a workhorse of a machine. It takes humongous piles of old rosemary down to a bagful that easily fits in a garbage can. We have a lot of clean up and clean out to do here and we could not have done it or be doing it without this tough machine! It pulverizes huge palm fronds like butter too!
By SoCal Gal

CSV-3090H - 2 out of 5 stars - Amazon Customer Review - Posted 05/31/14

I've used this for about 20 hours now. I've noticed that the blades seem duller after this amount of time, which I believe is well under the purported longevity of the blades. It just seems like branches are not sucked into the unit like they were before, they are repelled outward like spears. One actually shot out and jabbed me--was not happy about that, but at least it wasn't my face. The unit can handle up to 3", but anything over 2" it will just shoot back out at you unless you push it hard inward, and it seems the unit cannot really handle that either, so I would consider it a 'very small branch handling machine'. It can't handle roots or branches with twists whose angle exceeds 3", nor can it handle small trees. If you want to chip small branches, I've found it best to sent in top-first, by either bundling the small branches or bending the tree in half and leading that into the cone.

Shredding is very uneven. I find I have to re-shred or shred-then chip to get what I want, which is ok.

My main gripe with this unit is that it ended up getting halted by something it couldn't handle well, I think the leaves and grass clumps and branches were too moist and it clogged. I had to clear it by hand and remove the cone to pull out what was blocking, and then coax it to restart. This was very difficult. Then five minutes later, it did the same. So I wasted about an hour working on fixing the machine itself and about maybe 5-10 minutes actually doing real work. I was unhappy about all of this, and it made me think about selling the unit to some sucker (other sucker), while selling it as a top of the line thing. And then kicking myself for not spending twice as much for a used commercial unit that can chip nearly anything because that's what I really need.
By hoarselord

CSV-3090H - 5 out of 5 stars - Amazon Customer Review - Posted 04/15/13

ok i read the other reviews.... some folks are really unrealistic...twisted branches..yeah that happens, cut em to fit!! This thing eats everything that fits in it and if it doesn't fit trim it! It is a beast! and no I'm not affiliated with Patriot Products in any way. Fill it with gas and oil after simple assembly and your ready for business. I highly recommend!!!!!
By William, Elizabethtown, PA

CSV-3090H - 1 out of 5 stars - Amazon Customer Review - Posted 05/10/12

I purchased this Patriot wood chipper product WITH the higher priced Honda motor so i could be assurred of no problems. I bought it for chipping branches, limbs, clean up around the property. It literally bogs down on every branch, and quits running. It will not chip 3" diameter branches as it claims. If you have a branch that is NO larger than 1" in diameter and is PERFECTLY straight with no bends or curves whatsoever (have you ever seen a branch like this?) then it might work for you. If you strictly want to shred leafs there are a lot cheaper ways you can go. I wanted this to work because Patriot is an American company and its important to me to buy American. So im very disappointed to give their product a poor review.
By Investment Reader, Portland, OR

CSV-3090H - 4 out of 5 stars - Amazon Customer Review - Posted 12/14/11

The chipper came in two boxes promptly after ordering. All of the parts were there with some extra nuts and bolts. The assembly instructions were excellent. The honda engine started on the first pull, and i chipped up a bale of wheat straw just to see if it worked. nice mulch was produced. i did learn from a quick experience that the bag had to be attached if i wanted to actually collect the shredded material. filler funnels are required to fill both the oil reservior and the gas tank. and a flash light will be required to verify the proper oil level. the oil dip stick is not that helpful.
By Ronald

CSV-3090H - 5 out of 5 stars - Amazon Customer Review - Posted 03/16/11

I purchased this product about a month ago directly from the company. when I called he company after working hours I received a call back right away the next morning and had all my questions answered to my fullest satisfactory. I have been chipping/shredding for several hours a day a few times a week and had no problems at all. It started with the first pull and I (woman) have no problem whatsoever operating this. I am very happy to have purchased this and don't expect any problems with it. Should there be any in the future I am confident that the patriot company will be great in finding a solution. Well done Patriot! This is a great product.

****
Update:
as of June 2013 the shredder is still working as it should. we are very happy with our purchase
By desertordessert , FL

CSV-3090H - 1 out of 5 stars - Amazon Customer Review - Posted 09/14/10

I was really excited about the performance of this chipper for the first 6 hours. After some minor clogging the unit seized up. I cleared the chips from the chipper housing and the unit is still not functional.

The owner of Patriot Products did return my call but was in my opinion not helpful--his knee jerk reaction was that it was probably a problem with the Honda engine (the same engine their company likes to brag about in their literature)and said you need to contact Honda without giving any contact information or help in that area.

This was way too light of duty to have this chipper fail so easily. I wish I had rented--this unit was pricey!
By Haight

CSV-3090H - 5 out of 5 stars - Amazon Customer Review - Posted 04/22/09

The Patriot CSV-3090H Chipper and Leaf shredder exceeded every expectation I had. Right out of the box, a single pull on the rope started the Honda engine. Since then I've never had to pull twice to get it going. Once the chipper is warmed up, it eats everything I want to throw at it. Old branches, new branches, old leaves, pine cones and multiple brands of twigs all generate a mulch my wife loves. The best news and first thing I tell friends is the Chipper is made in the USA. (No, it isn't sold by Walmart). We need more companies like this who still take pride in quality workmanship. Then maybe American-Made can compete again.
By Robert, Richland, WA

5.0 out of 5 stars"Powerful Wood Chipper"

"Ingenuity, simplicity, performance and value.”
Ken Morrison, Power Equipment Trade Magazine

5.0 out of 5 stars"Patriot Chipper Aces Tests"

“The Patriot CSV-3090H Chipper and Leaf shredder exceeded every expectation I had. Right out of the box, a single pull on the rope started the Honda engine. Since then I've never had to pull twice to get it going. Once the chipper is warmed up, it eats everything I want to throw at it. Old branches, new branches, old leaves, pine cones and multiple brands of twigs all generate a mulch my wife loves. The best news and first thing I tell friends is the Chipper is made in the USA. (No, it isn't sold by Walmart). We need more companies like this who still take pride in quality workmanship. Then maybe American-Made can compete again.”

5.0 out of 5 stars “Great product and great customer service from the Patriot company”

“I purchased this product about a month ago directly from the company. When I called the company after working hours I received a call back right away the next morning and had all my questions answered to my fullest satisfactory. I have been chipping/shredding for several hours a day a few times a week and had no problems at all. It started with the first pull and I have no problem whatsoever operating this. I am very happy to have purchased this and don't expect any problems with it. Should there be any in the future I am confident that the patriot company will be great in finding a solution. Well done Patriot! This is a great product.”
Update: As of June 2013 the shredder is still working as it should. We are very happy with our purchase.”

5.0 out of 5 stars"Rugged Design and Compact Profile"

“What sold me on the Patriot CSV-3090H was its rugged design and compact profile. Thanks!”
Mark, Kingwood, TX

5.0 out of 5 stars"Made short work of Brazilian pepper tree prunings"

“Your chipper has made short work of a huge pile of Brazilian pepper tree prunings. A blessing. I’m also very pleased with its performance on dry and small green palm fronds. Thanks for your help.”
Mary, Nokomis, FL

5.0 out of 5 stars"Works amazingly well"

“Your 9hp Honda powered chipper shredder works amazingly well. Also arrived packed amazingly well. I'm very happy with it. Doubly happy as it is an American product. ”
Patrick, Carmichael, CA

$1,899.00
SPARE PARTS

Spare Parts for CSV-3090H

Patriot Chipper Parts: CSV-3090H 9HP Gas

Part # 300010690                              9hp Engine Mount and Axle

Part # 302010255                              14" Fan Housing

Part # 303010235                              14" Center Plate

Part # 325002085B                            Wood Chipper Tri-Plate Rotor

Part # 400010365                              Chipper Cone Casting

Part # 500050375A                            Wood Chipper Cone

Part # 705520005                              5/16-18 x 3/4 Hex Head Cap Screw

Part # 706520005                              5/16-24 x 3/4 Hex Head Cap Screw

Part # 718520005                              5/16-18 x 1 1/4 Hex Head Cap Screw

Part # 751520005                              5/16-18 x 1 3/4 Hex Head Cap Screw

Part # 888000034                              9hp Honda Engine

Part # 990000015                              Wood Chipper Knife Kit

Part # 993090035                              Gas Wood Chipper Y-Hammer Parts Kit



View all Patriot Chipper Replacement Parts for Sale.

$1,899.00
