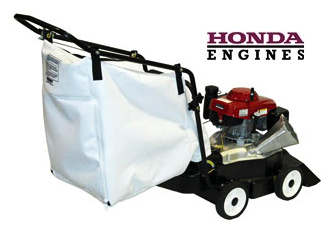

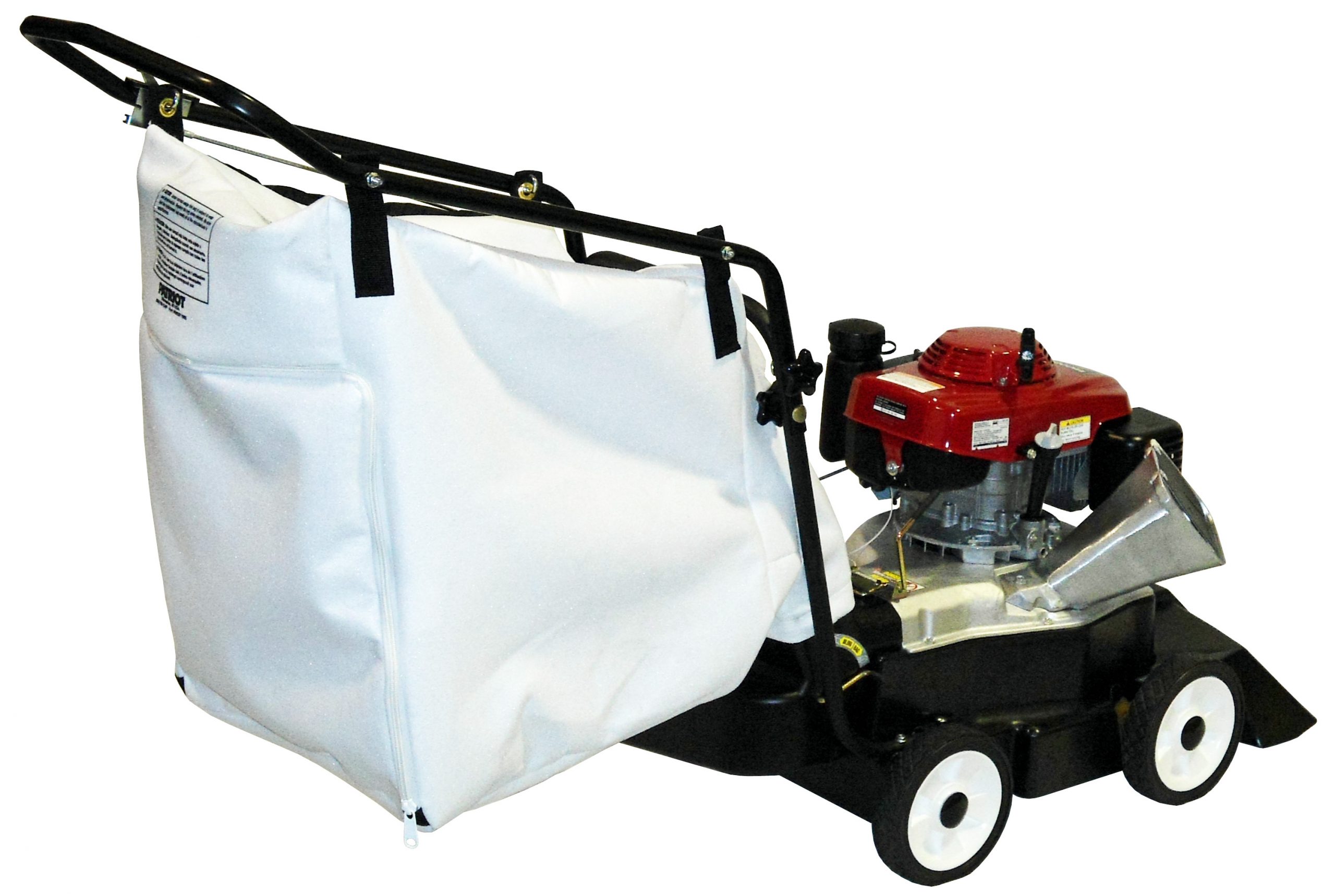

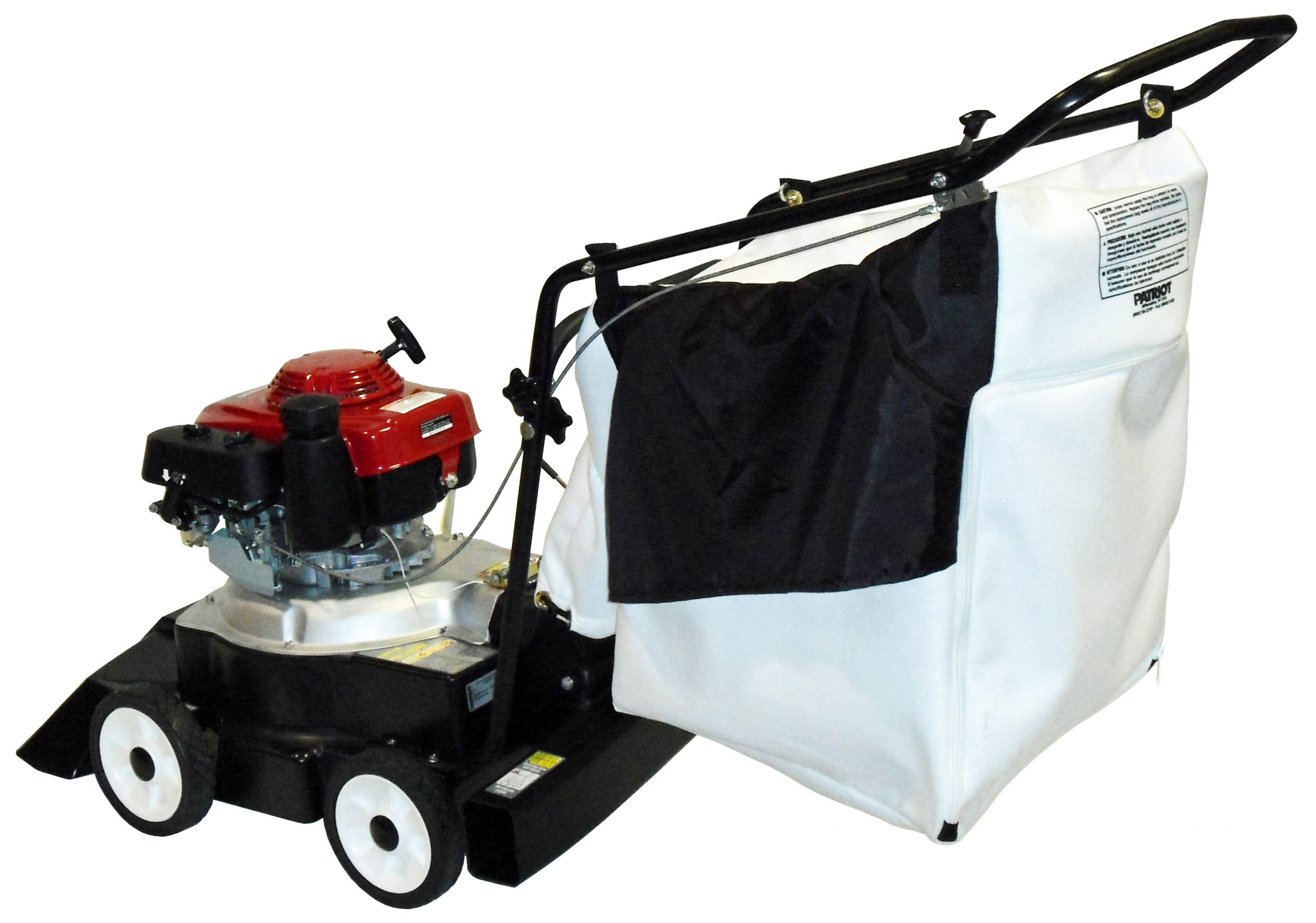

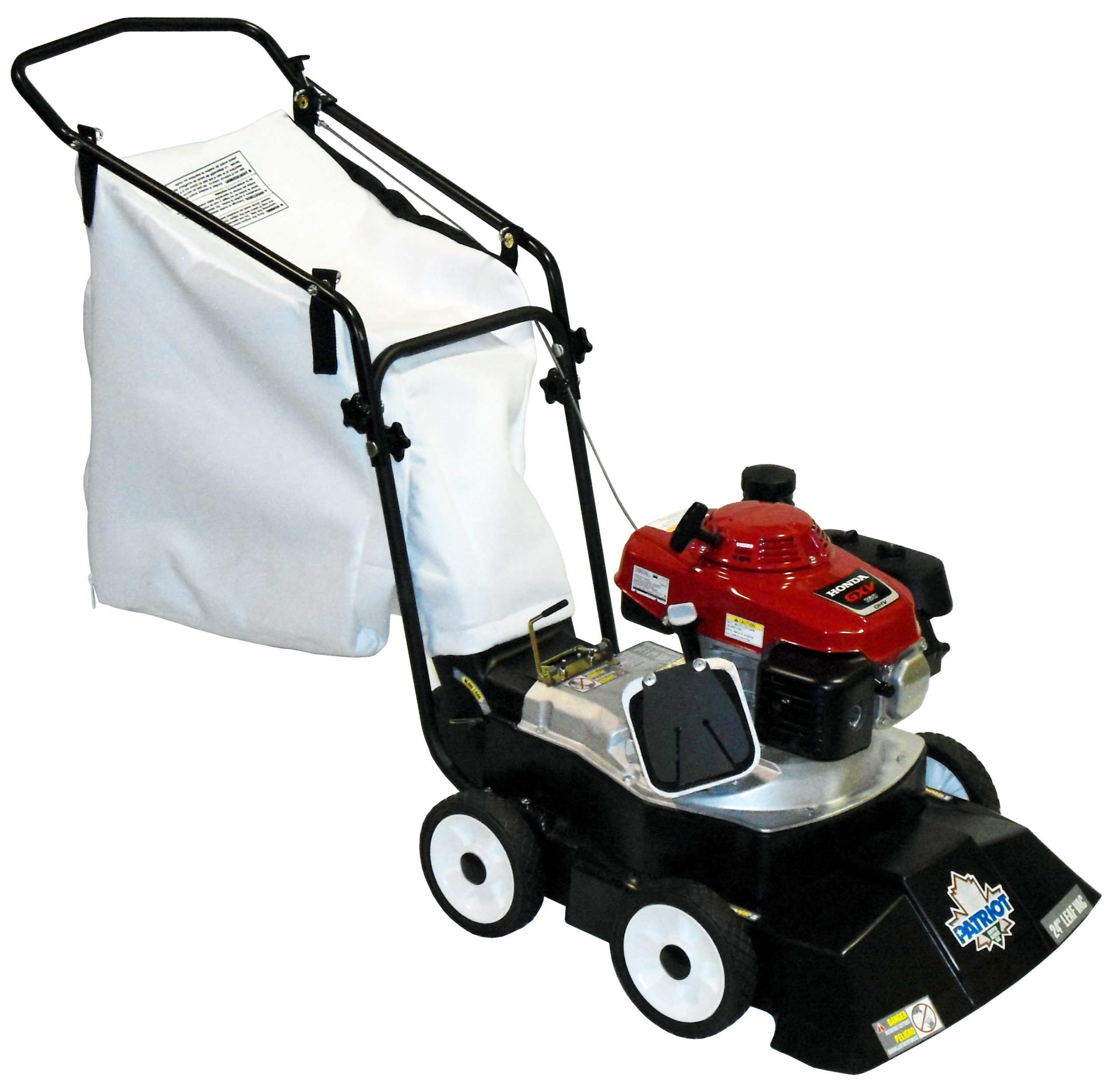

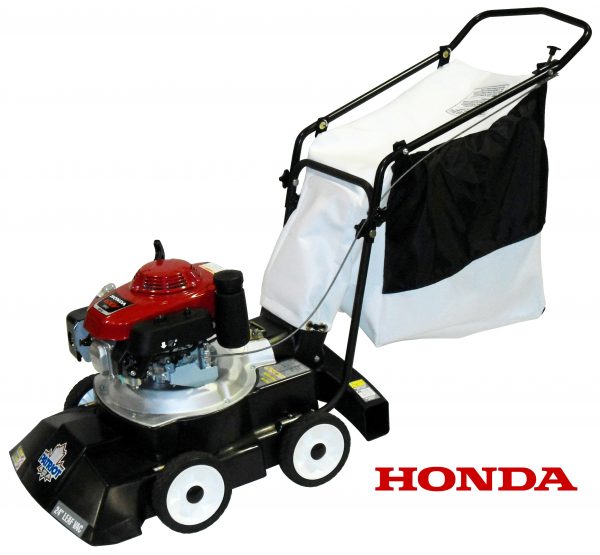

CBV-2455H Chipper Blower Vac with 5.5 hp Honda Engine

Call 262.523.4580 to get help
or place an order by phone
Product Number: CBV-2455H
Product SKU: 794617000026
$1,199.00
Select Quantity:
A leaf vac with a Honda engine means high output, low maintenance.
  • 5.5 hp Honda GX series commercial grade gas engine
    THIS ENGINE IS 50 STATE COMPLIANT
  • Chips branches up to 2 inches in diameter
  • Clears 24 inch wide path with every pass
  • Flip the lever to turn the lawn vacuum into a powerful leaf blower

Click below on the Recommended Accessories tab for CBV-2455H accessories
Click below on the Product Features tab for a basic product description
Click below on the Why Patriot tab for a detailed product description
Click below on the Chipper Reviews tab for CBV-2455H specific reviews
Click below on the Spare Parts tab for CBV-2455H specific parts

Chipper blower vacuum Patriot CBV-2465B5.5 HP lawn vacuumLeaf vacuumGas lawn vac5.5 hp HondaBuy direct from Patriot, and try it for 90 days. If you are not satisfied, we will buy it back.
RECOMMENDED ACCESSORIES

Customers Also Bought

Parts kit, chipper knife, 3" 990000015 $75.00
Parts kit, flail blade 990091225 $36.00

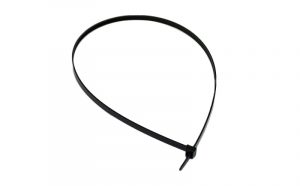

Cable tie, CBV bag 888000026 $2.00

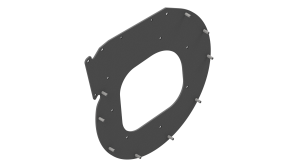

Center plate, 14" 303010235 $96.00

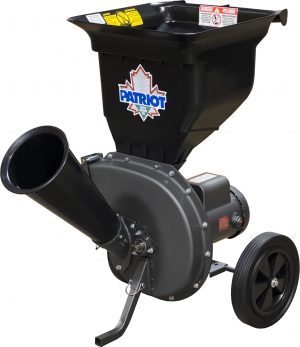

1.5 hp Electric Chipper, American (110v) CSV-2515 $999.00

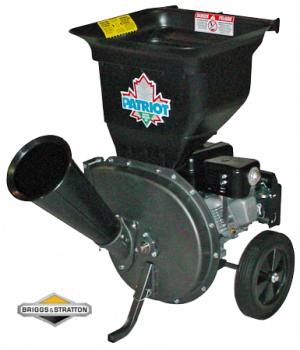

6.5 hp Wood Chipper Shredder, Gas Briggs Engine CSV-3065B $1,249.00
10 hp Wood Chipper Shredder, Gas Briggs Engine CSV-3100B $1,449.00

PRODUCT FEATURES

About This Product...

5.5 HP Gas Leaf Vacuum Blower

The powerful Honda GX series commercial engine makes this gas leaf vacuum blower the ultimate 3-in-1 clean-up machine. This lawn vacuum can clear a 24-inch wide path in a single pass, whether it’s in your yard or on the driveway.

Twigs and small branches often clutter the yard and get in the way. Simply feed the wood into the cone to chip them into tiny coin-sized pieces for disposal or use as mulch. With the included collection bag, clean-up will be a no-hassle process!

Convert this lawn vacuum into a powerful leaf blower with the flip of a handle. Blow grass clippings off your driveway or clear parking lots of leaves with this resilient, high-quality machine. The durable Honda engine delivers smooth, quiet, fuel-efficient power needed to make fall clean-up a breeze. With 10-inch wheels, this lawn vacuum is ready to take on your yard today.

Our Patriot CBV-2455H 5.5 hp lawn vacuum demonstration video shows you how our high quality lawn care equipment makes yard work speedier.

Leaf Vacuum Reviews and Testimonials from Real Customers

Ingenuity, simplicity, performance and value.”
Ken Morrison, Power Equipment Trade

I perform cleanup and maintenance for a small shopping center. My chipper-blower-vac is my most valuable asset because I clean the parking lot weekly. It makes short work of trash, cigarette butts, etc. I can clean a 2 1/2 acre parking lot in about 90 minutes. I’ve tried hand held blowers, but they are a joke when you have to do large areas, like my parking lots. The chipper-blower-vac can clean an acre an hour. I really love your products. Nothing else comes close.”
K.R.M., Newborn, GA

Those interested in the Patriot CBV-2455H should check out our lawn vacuum blower owner's manuals for more information on our superb lawn management equipment.

Buy the best leaf vacuum blowers for sale online from Patriot Products, Inc., your top resource for the best lawn care equipment and wood chipper shredders.

Contact the lawn vacuum blower sales team at Patriot Products, Inc. today for more information about the best leaf shredder blowers on the market.
$1,199.00
WHY PATRIOT

Why Buy a CBV-2455H

Chipper Blower Vac Specs: CBV-2455H

Lawn Vacuum Model        Vacuum
Product Number: CBV-2455H   Suction width: 24 Inches
Country of Manufacture: Made in USA          Collection Bag: 4-bushel with dust flap
Gas Engine
  Wheels
Horsepower: 5.5hp
  Tire Type: Never Flat
Fuel Tank Size: .75 Gallon
  Tire Size: 10 Inch
Feed Chute
  Overall Physical Dimensions
Opening Diameter: 5 Inches
   Total Weight: 97 Lbs.
Bottom Diameter: 2 Inches- Max. Wood Diameter    Size: 33L x 26W x 30H
Number of Blades: 2

Other Features

  • 140 mph leaf blower
  • Adjust from 1" up to 6" ground clearance
  • Ergonomic controls
  • Xenoy Deck
  • Great versatility: Lawn vacuum, chipper and leaf blower in one machine

















Why Buy A Patriot Lawn Vacuum?

Is the CBV-2455H Lawn Vacuum the Right Model for You?

Our model CBV-2455H is identical to our model CBV-2465B except that it is powered by Honda’s easy starting, quiet running, GX series commercial engine. Like our model CBV-2465B, the CBV-2455H is a versatile 3-in-1 machine ideally suited for the property owner (up to 1 acre) whose primary intent is to remove leaves from their lawn and shred them to reduce their volume, yet it still has the ability and power to chip up those smaller branches (up to 2" dia.) generated during routine yard maintenance. As an added bonus, the unit converts to a powerful blower with the simple flip of a lever. The CBV-2455H is also popular for parking lot maintenance since it can pick up light weight debris such as cigarette butts and wrappers without the need to constantly bend over

CBV-2455H Patriot lawn vacuum leaf inlet

24" Wide Leaf Inlet for Patriot Leaf Vacuum

Patriot's lawn vacuum has a 24" wide front inlet which allows you to suck up a large volume of material in a single pass. The snout can be set down low, with about 1" of ground clearance, for use on smooth hard surfaces. It can also be raised up high, with about 6" of ground clearance, for rougher terrain or when the leaves are really deep. Five height adjustments allow you to find the setting that works best for you.

See the CBV-2455 5.5 HP leaf vacuum demonstration video for an example of how this powerful machine easily handles yard debris.

Chipping cone for Patriot lawn vacuum CBV-2455H

Tapered Chipping Cone for Lawn Vac

Patriot's CBV-2455H includes a convenient chipping cone that smoothly and gently chips and bags rigid materials such as branches and sunflower or corn stalks. This feature is always available when the unit is running and requires no changes in the setup of the machine to use. If you come across a fallen branch while vacuuming, simply park the unit, pick up the branch, feed it into the chipping cone, and be on your way.

The opening at the top of the tapered cone is about 5" square so you can easily deposit debris for processing without pruning them down to perfectly straight pieces with no offshoots. The opening at the base of the cone limits the diameter of materials to be chipped to 2".

Patriot lawn vacuum rotor for CBV-2455H

Heavy Duty Rotor for Patriot Lawn Vacuum

Now that your yard waste has safely entered our CBV-2455H wood chipper leaf shredder it meets a formidable opponent, the rotor. Weighing in at just over 14 pounds and measuring roughly 12" in diameter, this is where things happen!

In this photo you see the top of the rotor and this unit's two chipping knives (painted blue here for ease of identification). Patriot's chipping knives are made of high quality tool steel, selected for its toughness, and are heat treated for wear resistance. Spinning past the end of the chipping cone the chipping knife is ready, willing, and able to turn your freshly pruned branches into coin-sized chips that make great mulch. These knives can reduce the volume of your freshly pruned branches by as much as 20:1. To sharpen the knives, simply remove the 2 bolts that attach the chipper cone to the housing and the 2 screws that attach each of the knives to the rotor. Sharpen using a simple wet stone or high quality file.

CBV-2455H Patriot lawn vac rotor with steel flail blades

It merits taking a moment here to point out that any wood chipper that uses chipping knives is designed to process FRESHLY CUT BRANCHES. The chipping knives are able to slice through this fresh material which makes for smoother, faster, easier chipping. We realize that everyone gets the occasional dead branch that falls out of a tree that needs to be chipped and the unit can handle those occasionally branches. However, you will be sorely disappointed if you are intending to use the chipping cone to get rid of that mountain of nearly petrified wood that your spouse has been nagging you about for years.

In this photo you see the bottom of the rotor. The first thing you'll notice is the two flail blades (painted blue here for ease of identification). The flail blades are stamped from thin steel sheet and then hardened. They are designed to shred leaves as they pass through the machine. The flail blades provide a volume reduction of about 4:1 for leaves.

The second thing you'll notice in the photo are the eight steel fan blades of the rotor. These blades create the high air flow responsible for both the unit's inlet suction and blower discharge velocity.

CBV-2455H Patriot lawn vac 5.5hp Honda engine

Commercial Grade 5.5 HP Honda GX Engine for Lawn and Parking Lot Vacuums

The CBV-2455H has a powerful 5.5 hp Honda GX series commercial engine. Don't be fooled by the "implied" one horsepower difference between the CBV-2455H and the CBV-2465B. Run side-by-side there's no way you'd say the CBV-2455H has less power. Honda's reliability and performance are why it's the number one choice of rental centers, professional landscapers, and municipal work crews. It is designed to run all day long.

Patriot Products lawn vac leaf collection bag for CBV-2455H

Large Shredded Leaf Collection Bag for Patriot Lawn Vacuum

The most common option for users is to operate the CBV-2455H in the "bagging" mode and accumulate the processed yard waste in the unit's large 4 bushel collection bag until it is ready to be dumped. The bag features a dust flap to direct the discharge air away from the operator. The back of the bag unzips for easy emptying. You can empty the bag while it is attached to the machine by unzipping the bag and pulling/pushing the contents out. This can be convenient if you are planning to spread the material out over your garden or around plantings. Another option is to disconnect the bag using our convenient quick release clamp located on the deck of the unit. Then the bag can be easily removed and emptied into a compost pile, wheelbarrow, trailer, yard waste bags, etc.

CBV-2455H Patriot leaf vac blower

Powerful Blower for Patriot Parking Lot Vacuums

Patriot's CBV-2455H has the added bonus of a powerful built-in blower that discharges air at approximately 140 mph. It provides the obvious benefits of clearing off a patio, driveway, or parking lot. Less obvious is how it can drastically reduce the time and effort required to vacuum up the leaves in your yard. Here's how it works:

Most yards are not buried in a thick layer of leaves when we decide it's time to clean up. Take the lawn vacuum to the center of your work area and switch it into the "blowing" mode. Make one pass across the work area. You will have sucked up, shredded, and discharged the 2 foot wide path below the unit. However, in the "blowing" mode you will have also cleared a 3 to 4 foot path to the left of the machine. Therefore, in one pass you have cleared a 5 to 6 foot path and not pushed around the weight of any leaves. Now turn around and do the same thing. In two passes, you've cleared a 10 to 12 foot wide path and only pushed the weight of the vacuum itself. Continue this process until you get a nice thick layer of leaves on the yard. When the leaves are 4 to 6 inches deep, switch the unit to the "bagging" mode and begin sucking up the leaves. While the bag fills more quickly, you are minimizing the distance you are pushing the weight of the shredded leaves. With a little creativity, you can do a lot of yard work with a minimal amount of effort.

Compact Parking Lot Vacuum from Patriot Products, Inc.

Patriot's gas leaf vacuum blower is versatile yet is similar in size to the average push mower. With the handle collapsed, the Patriot CBV is small enough to fit into common vehicles such as mini vans and SUVs.

Light Weight Lawn Vacuum Units

Weighing only 97 pounds the Patriot chipper shredder is one of the lightest units available. This makes the unit much easier to maneuver around the yard or load into a vehicle for transport.

Need Another Opinion?

Sure we're a little biased about how great this unit is, but don't just take our word for it.

Patriot 5.5 HP lawn vacuum reviews and customer testimonials

Minimal Assembly Required for Patriot Leaf Vacuums

Our products are designed with the average homeowner in mind. The CBV-2455H ships via UPS Freight in one box strapped to one pallet. There are only a few screws and nuts to install to finish assembling your unit. Assembly is very simple and typically takes 15 to 30 minutes. Detailed instructions are provided.

Leaf and Lawn Vacuum Warranty and Patriot's Promise

Patriot's goal is to provide top-notch products and back them up with a generous warranty and superior customer service. The CBV-2455H comes with a 2-year warranty for residential use. If you purchase a product factory direct from Patriot Products, Inc. you may return it for a full refund within 90 days if you are not completely satisfied.

Lawn vacuum warranty and return policy

Service/Warranty Repair

Because our products are designed with the average homeowner in mind, you can typically handle the routine maintenance of the machine without the need to take it somewhere for service.

If you need assistance servicing the machine or in the unlikely event that you need a warranty repair, the best thing to do is contact us first. While we have dealers and service centers that are familiar with our products, we can work with you to find a reputable outdoor power equipment center close to you that can service your product.

Whatever your situation, help is just a phone call away.

Still Have Questions?

Don't despair, call us at 1-800-798-2447 or email us at info@patriot-products-inc.com

We want you to have all of the facts so that you purchase the product that is right for you.

$1,199.00
CHIPPER REVIEWS

Reviews for CBV-2455H

Click here to review ALL of Patriot's customer reviews and testimonials

CBV-2455H - 4 out of 5 stars - Patriot Customer Review - Posted 03/11/15

I like the CBV-2455H. I use it to clean the yard of pine cones and needles. My wife often walks the dog in an area where the cones proliferate and they have caused her to slip and fall in past years (which is why I bought the CBV in the first place). The suction power is good and even with the long hose does a fair job of pulling up our cones and needles, even when they are wet and heavy. I had some problem with the flail blades breaking early on, but through practice and diligence, have gotten better at avoiding the densest and heaviest wet cones (and the occasional rock). Better to vacuum on a nice warm day when everything is dry, but not always possible (so I double up the flail blades on wet days). When I did have a problem, Patriot support was helpful and assisted me in resolving the problem. CBV usage has gone down the past couple of years, but that is due to the weather here and a low count of pine cones.
By Dave, Evergreen, CO

CBV-2455H - 5 out of 5 stars - Patriot Customer Review - Posted 02/28/15

It gets a bit difficult to move about a grassy loan especially when it starts to get full. Otherwise, it performs very well, starts easily and makes tough work a bit better.
By Robert, Roanoke, TX

CBV-2455H - 5 out of 5 stars - Patriot Customer Review - Posted 02/24/15

I just purchased my second Patriot. The first one lasted 18 years. My only wish is that it would be self propelled.
By Joseph, Williamsburg, VA

CBV-2455H - 4 out of 5 stars - Amazon Customer Review - Posted 12/13/14

I just wrapped up my first fall clean up using the CBV on my half acre property with many mature oak and maple trees. Note, this product page is titled “CVB-2455H”, but Patriot’s website lists the item as “CBV-2455H.” Heads up: as a mechanical engineer, my review may be a little too detailed and/or nitpicky. I also like to make things work better, so my own brainstorming ideas are shared herein.

Engine/impeller: Honda GX series engines are great, and I’m glad I went with this engine option. Plenty of power, seems fuel efficient. Starts on the first pull for me every time. However, I will note that the pull is heavy. This is a result of the mass of the impeller mounted directly to the drive shaft (a standard configuration in push vacs). Naturally, this will have a heavier pull than your lawn mower, because the impeller has much more material/mass than lawn mower blades. The impeller seems well constructed with heavy gauge steel and should last many years without issue. I haven’t worn through a set of flail blades yet, so I’ve yet to see how long they last. Operation: Set the throttle and go. If you want to use the blower, simply flip the lever near the deck. When vacuuming, the unit gets very heavy when the bag fills. No surprise there, but you definitely notice the weight since this unit is not self-propelled. As the unit takes on leaves/weight, I find it sometimes difficult to push through the grass. I wonder if taller wheels would be helpful for getting over uneven lawn areas (of which I have many). Sometimes it feels like I’m pushing the wheels through the grass rather than the wheels rolling over the grass. I’ve thought about trying wider pneumatic ones.

Bag: I don’t love the zipper closure. It seals well, yes, but I find it gets jammed by leaves and material when I’m trying to close it back up. I have seen other manufactures use nautical fasteners on the bag, and I think this might be a better choice. I do not like the bag/deck connection means at all. I would prefer that the bag disconnect from the blower diverter valve rather than have the whole component come off with the bag (bag is zip tied to the valve). It’s too awkward to maneuver a full bag over a garbage can for emptying when you have an extra foot of heavy plastic attached to the end. Perhaps it was never intended for the bag to be removed for emptying. However, if you don’t remove the bag, you will find yourself digging into the compartment to get leaves out. I’m playing around with replacing the black zip tie with a cinch so I can easily disconnect it. This would also allow you to use the blower while the weight of the bag is off the machine.

Performance: Suction power is good, including leaves that are not 100% dry. The path is 24” wide, and having used this on a large property, I think I may have underestimated my needs. There is too much ground to cover on my property to push the vac all over. Instead, I use a backpack blower to blow leaves into a smaller area on my lawn first (or onto my driveway) and then run the vac. The blower on this unit works well and moves a lot of air, but would also require pushing all over 1/2acre of grass. Keep in mind your needs and expectations. For a lawn my size, it probably would have been more effective to go with a high capacity lawn tractor mounted system. Nevertheless, I’m satisfied with the performance of the suction (will pull up gumballs from my driveway, but not consistently out of the grass). I think the claimed 12:1 shredding is a little too optimistic. I find that a large pile of leaves on my driveway is reduced to 1/4 the original volume once shredded. It’s certainly better bagging 1 bag instead of 4, but my experience has not been near 12:1. I have to believe this is very much dependent on the type of leaves, dryness, and how fast you move material through the machine. Chipper chute works great for breaking down tree limbs I’ve pruned and the occasional deadwood.

Overall: Happy with the purchase. Great engine, good suction. Like I mentioned, I may have underestimated the needs of my property (12k sqft of grass). However, the unit has performed well and the quality appears very good. I wouldn’t hesitate to purchase another product from Patriot.
By Scott, Alexandria, VA

CBV-2455H - 4 out of 5 stars - Amazon Customer Review - Posted 11/05/14

Excellent vac!! Does what it is expected to do. It is definitely very difficult to start so if you are an older person, you may need some help getting it started. The leaf bag is in a tough spot to get underneath to empty it and it is a pain to keep taking the whole thing off the bottom. That said, once it is going it saves you a lot of time from raking leaves up. To bad it does not have a hose attachment so you can get into any flower beds you may have. I usually use the blower first to get everything to a spot and then let the patriot do the work.
By Anthony, Massapequa Park, NY

CBV-2455H - 5 out of 5 stars - Amazon Customer Review - Posted 08/24/14

I have had the Honda version for almost 2 years. I have a small property (1/5 of an acre) with only two large maples of my own, but I end up with all my neighbors leaves so I got tired of the back breaking effort of raking every week in the fall and bagging them. I got the Honda over the Briggs because of reputation of the Honda small engine.

* Came delivered on a small pallet and assembly was pretty easy.
* I found starting was a little tricky, I found it best to put the throttle almost all the way forward. It didn't seem to start when all the way forward.
* Good vacuum power, but too many leaves it may clog the snout. Handles wet leaves pretty well in moderation. Best bet is to tilt it back and lower the front slowly when dealing with large piles of leaves.
* Blower is strong and works well on dry leaves, I have to tilt it back to get low for the wet packed down leaves. It would be nice if there was an adjustable flap to divert the air flow. I find it easier to blow the leaves onto a hard surface and then vacuum them up.
* When the bag is full (sooner if a bunch of chipped branches or wet leaves) will cause the front end to lift.
* Emptying the bag is a little awkward and messy because I have to put the leaves in bags or barrels., I also believe any bag would be the same.
* I wish the size of the shredded leaves was smaller, but does a decent job.
* The chipper is fantastic, I get a lot of small branches/twigs in my yard and when I trim the neighboring trees branches over my fence. Granted all the bending to get rid of a large amount of branches leaves my hamstrings sore, but the fact that it handles everything I put at it, it is a minor pain.

In order to get my leaves into barrels I fill the vacuum bag, bring it over to the driveway, open the bag and use my handheld blower/vac with hose attachment connected to my barrels. This serves few purposes, it shreds the leaves even finer, puts the leaves in the barrel and keeps me from having to bend over and lift all the leaves. Last year I collected over 700 gallons of very finely shredded leaves.

The pie in the sky wish list
* It would be nice if there was a hose attachment for getting in between bushes and flower beds.
* If you could choose to blow it out either side
* There would be a platform and hose attachment you could put a paper leave bag / barrel on and suck the leaves right into the container. This would make it very easy for those smaller properties that have to use the paper leave bags or barrels.

Bottom line once I figured out the few idiosyncrasies of the vacuum, I found it makes my life a lot easier and would buy it again.
By BeanTownUser

CBV-2455H - 5 out of 5 stars - Amazon Customer Review - Posted 08/24/14

Superb Product!
I usually don't write reviews, but I find them helpful and my wife won't buy anything without reading them first -so I will start
The good-
-Honda Engine -flawless- plenty of power - starts easily - runs smooth and cleanly - A+
-Suction -picks up leaves twigs bugs - just about anything not nailed down (unfortunately not sweet gum balls but have not found anything that does that)
-Bag- plenty big with sturdy zipper - opens big enough to empty pretty easily if you don't fill too full)
-Blower - again powerful and easy to use -
-Chipper -handle small branches with ease
Areas I would improve -
-Front wheel adjustment -for $1k I think a lever type adjuster would be reasonable -
-If I was to purchase again I would get the self propelled and pay the extra- gets hard to push in deep leaves and grass -
But pays for itself in time and effort saved -
(One year I scratched my cornea raking leaves -cost me more that this thing in lost work hours and doctor bills - always use goggles now-HINT!)
By William, Germantown, TN

CBV-2455H - 5 out of 5 stars - Amazon Customer Review - Posted 08/23/14

Excellent machine. It works as expected. Saves me so much time and effort cleaning up my leaves, Reduces the number of bags filled by a lot. Chipper comes in handy also.
By John, Morrisville, PA

CBV-2455H - 5 out of 5 stars - Amazon Customer Review - Posted 08/20/14

This is the second Patriot Lawn Vaccum that I have owned. I am pleased with the performance and I like the upgrades that have been made over the previous model. A motorized version would make leaf pick up faster.
By Ted, Huntsville, AL

CBV-2455H - 5 out of 5 stars - Amazon Customer Review - Posted 08/19/14

I use this machine at my cabin and my home. That adds up to a lot of leaves. The Patriot never misses a beat. This machine has made my fall chores much, much simpler. The Honda engine is extremely powerful and I highly suggest spending the extra money for the Honda power. This engine is true commercial grade and should last for many years. So far I have had no problems with the Patriot and I am proud to say it is Made in America.
By Kevin, Sandy, UT

CBV-2455H - 4 out of 5 stars - Amazon Customer Review - Posted 08/19/14

This Patriot vacuum/shredder is excellent when it comes to getting rid of the leaves. I DO, however, have 2 issues with it. The first issue is probably due to the fact that I am 56 years old and female - but the machine gets incredibly difficult to push once the bag is about half full of leaves, so I either have to empty it more often, or just not use the bag at all. The second issue is the fact that for whatever reason, it is awfully hard to start. I end up pulling the cord sometimes 30 times or more before it will finally start.

In conclusion, this machine is much quicker than raking - but it isn't exactly perfect for a 56-year old grandma.
By Gayle, Morrow, GA

CBV-2455H - 5 out of 5 stars - Amazon Customer Review - Posted 08/18/14

This machine definitely takes the chore out of gathering leaves when they fall. It is powerful and is amazingly faster than raking. The mulching feature turns would be piles of leaves into finely chopped mulch that is easy to dispose of in a variety of ways. The mulched leaf bag is large capacity and easy to empty.
By Thomas, Chippewa Falls, WI

CBV-2455H - 5 out of 5 stars - Amazon Customer Review - Posted 11/05/12

I have wanted a yard vac ever since moving into my current home. I used to use my Stihl blower/vac for fall cleanup, but it was very cumbersome. As good as my Stihl is, it is no match for my fairly large yard with mature maple and cottonwood trees. I wanted a good yard vacuum but was less than impressed by the Troy Bilt's I was looking at. I did some research and found Patriot. There are two models; one with a Honda engine and one with a Brigg's engine. I'm a Honda small engine fan so it was a no brainer. I could have saved $300 if I would have bought the Brigg's powered model, but who cares. I was very satisfied with the way the machine worked in very tough damp/wet conditions with leaves that had been rained and snowed on. No vacuum is going to take the rake out of your hands if you want to get your yard really clean, but the Patriot is a great tool for fall cleanup. Highly recommended. The only thing I don't like is the Honda engine (which I thought was made in USA) was made in China. What is this world coming to?
By sevenpedaler
$1,199.00
SPARE PARTS

Spare Parts for CBV-2455H

Patriot Lawn Vacuum Parts: CBV-2455H 5.5HP

Part #804001245 1/2" Axle for Lawn Vac Wheels
Part #602022045 Spare Left Clamp Spring for Leaf Blower
Part #602022055 Spare Baffle Clamp Spring Right
Part #610021935 Baffle Discharge Clamp Handle
Part #601051855 Support Bracket for Wood Chipper Wheels
Part #888000026 Cable Tie for Wood Chipper Bag
Part #767051995 1" Black Cap for Leaf Vac Replacement Part
Part #767052005 2" Black Cap Assembly Part
Part #725051765 H/Adjacent Black Cap for Leaf Vac
Part #503001145A Cone Casting Part for Wood Chipper
Part #749020005 1/4-20 X 1 1/2 Cap Screw for Lawn Vac
Part #750020005 5/16-18 X 2 Curved Head Screw for Leaf Vac
Part #800071525 Warning Sign Decal for 24" Leaf Vac Cone
Part #800071565 Left Decal Sign Relaying Potential Danger for Wood Chippers
Part #800071585 Right Decal Sign Relaying Potential Danger for Wood Chippers
Part #800071605 Blow Bag Arc Sticker Decal for Leaf Blower Vac/Wood Chipper Bag
Part #800071635 Caution Decal Sign for Wood Chipper
Part #800071645 Danger Decal Sticker for Wood Chipper Cones/Lawn Vacs
Part #800071625 Danger Stay Clear Warning Sign for Leaf Vacs/Wood Chippers
Part #800071615 Danger Rotating Cutters Decal Sign for Wood Chipper Blades
Part #800071535 Patriot Products Logo Decal for Lawn Equipment
Part #800071095T Throttle Control Decal Sticker with Bunny for Wood Chipper
Part #503001075B Engine Mount Assembly Part for Leaf Blower
Part #888000029 5/16-18 x 1 FHSCS Screw for Leaf Vac
Part #768800000 5/16-24 x 1 FHSCS Screw for Leaf Vac
Part #706850005 5/16-24 x 5/8 Flat Head Socket Cap Screw for Lawn Vacuums
Part #708052065 4.5" Black Handle Bar Grip for Leaf Vacuum
Part #810051285 Handle Bar Grip for Steering Leaf Blower Vacuums
Part #641051255 Lower Ergonomic Handle Bar for Steering Leaf Blower
Part #641051276 Upper Ergonomic Handle Bar for Steering Leaf Blower
Part #920000005D-B Hardware Bag Assembly CBV
Part #753520005 3/8-16 x 3/4 HHCS for Leaf Blower Vac
Part #748500005 3/8-24 x 3 1/2 HHCS for Leaf Blower Vac
Part #756520005 1/2 x 1 1/2 HHSB for Leaf Blower Vac
Part #744520005 1/4 x 1 1/4 HHTFS Type B Screw for Leaf Vac
Part #735050005 Black Hub Cap for Leaf Blower Vac Wheels
Part #746520005 1/4-20 x 5/8 HWHTCS Screw for Leaf Vac
Part #747520005 5/16-18 x 1 1/2 HWHTCS Screw for Assembling Leaf Vac
Part #766520005 5/16 x 5/8 Type B HWHTFS Bolt for Leaf Blower Vac Handle
Part #757020005 1/4-20 x 2 5/16 J-Bolt
Part #705350005 5-Star Knob for Lower Handle
Part #800071716A Manual with CBV 2455H and CBV 2460 Parts
Part #752320005 3/8-24 NILN for Leaf Blower Vac
Part #888000074 Parts Kit for Replacing Baffle Discharge Port on Leaf Blower Vac
Part #990021235L Parts Kit for 5 part H/Adj Left CBV
Part #990021235R Parts Kit for 5 part H/Adj Right CBV
Part #888000059 Replacement Collection Bag CBV with Parts Kit
Part #325001165B CBV Rotor Replacement with Parts Kid for Leaf Blower Vac
Part #888000060 CBV Black Snout with Parts Kid for Leaf Vacuum
Part #990001215 Chipper Knife for Leaf Blower Vac with Parts Kit
Part #888000073 Parts Kit for Attaching Upper Handle Bar on Leaf Blower Vac
Part #990051305 Parts Kit for Installing Pin Plunger Switch on Leaf Blower Vac
Part #990040005FR Parts Kit for Installing 8" Wheel on Leaf Blower Vac
Part #704900005 1/2" Push Nut for Leaf Vac Wheel
Part #710920005 1/4" Push Nut for Leaf Vacuum Wheel
Part #703120005 3/16 x 5/8 Rivet Flange Head for Leaf Blower Vac
Part #538031105A Blue Snout Assembly Component for Leaf Blower Vac
Part #538081105A Green Snout Assembly Component for Leaf Blower Vac
Part #624021925 Switch and Clamp Bracket Installation for Leaf Blower Vac
Part #800071295 Throttle Control for Leaf Blower Vac
Part #800052035 Vac Adaptor Replacement Part CBV
Part #601050625 Vac Handle Installment for Leaf Vac
Part #722050005 Vac Hose for Leaf Blower Vacuum
Part #503051115 Black Vac Tray for Leaf Vacuum
Part #507400005A Yellow Wing T-Knob for Leaf Vac Handle Grip
Part #888000067 Wire Harness B Part for Leaf Vacuum
Part #888000050 1/4" Tap Wire for Leaf Vacuum
Part #832011045D Leaf Vacuum Xenoy Deck Assembly Parts
Shop all Patriot Lawn Vacuum replacement parts online.
$1,199.00
