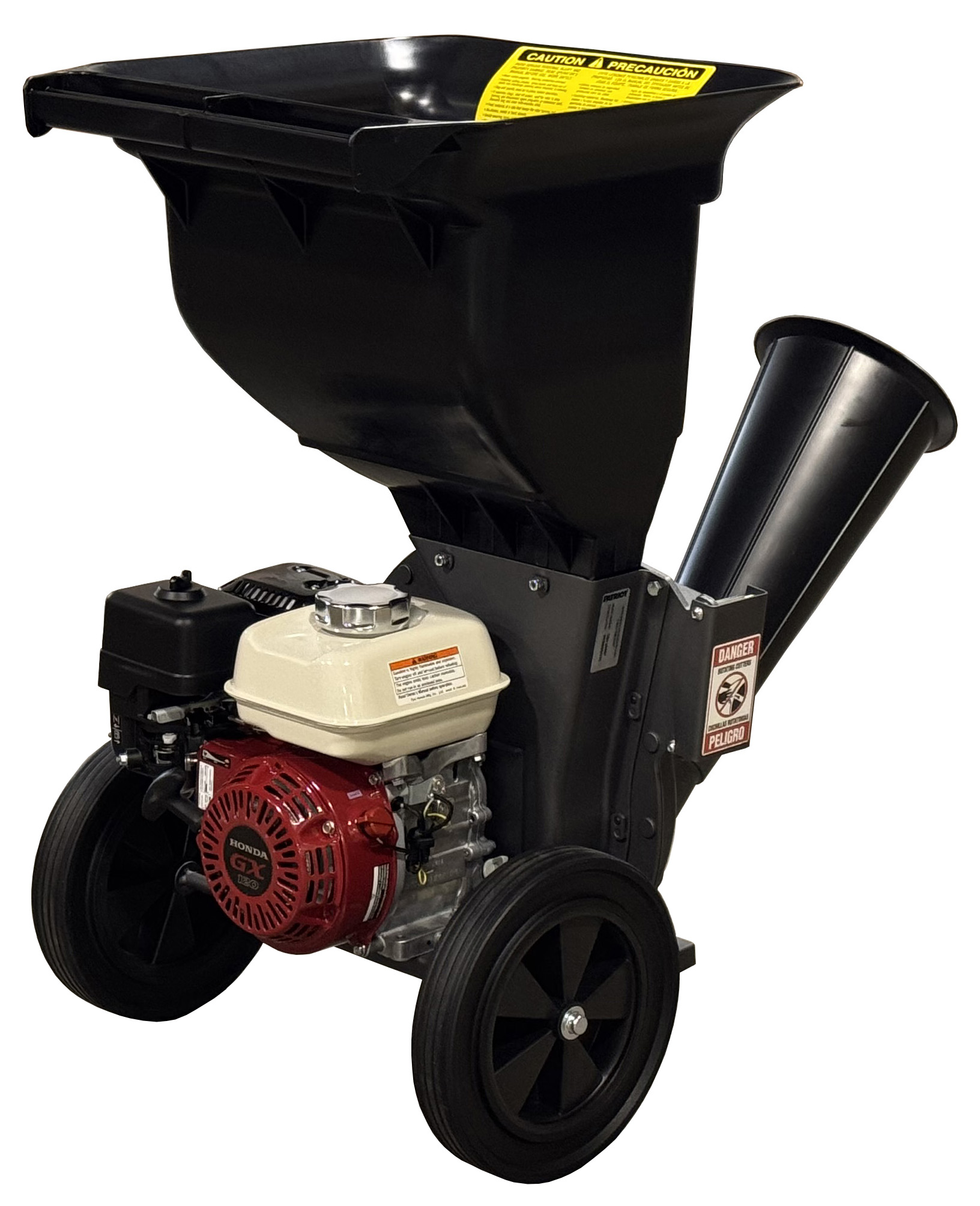

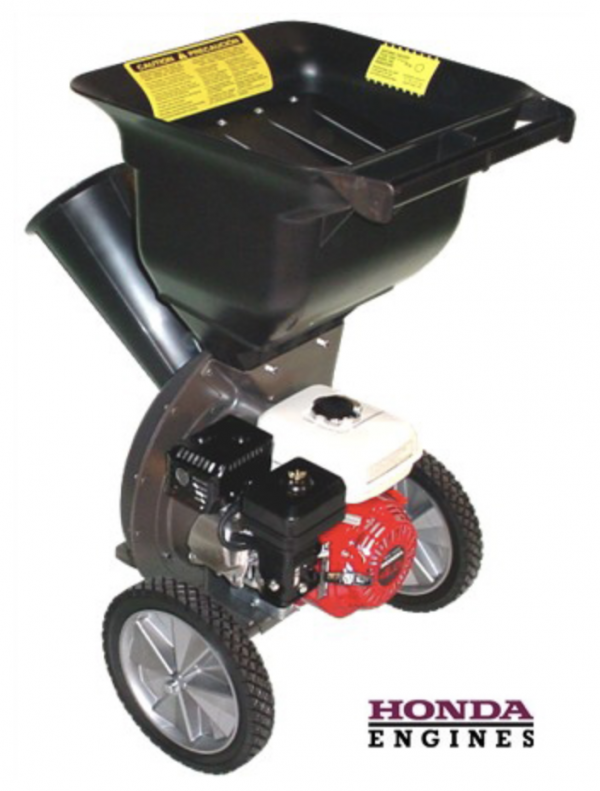

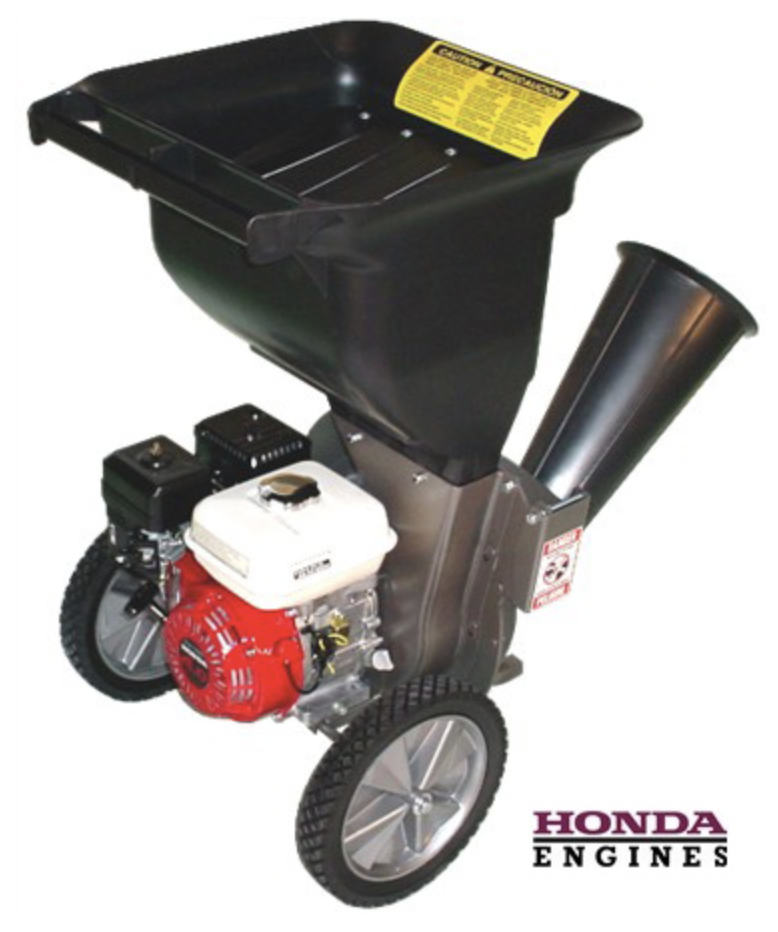

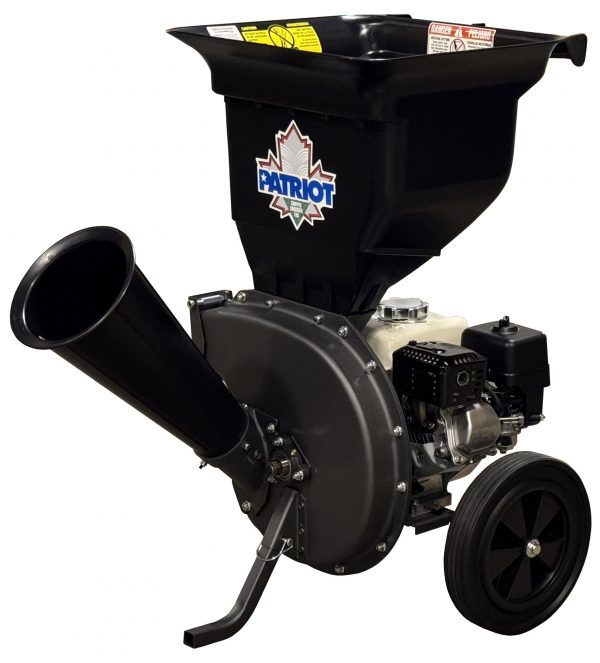

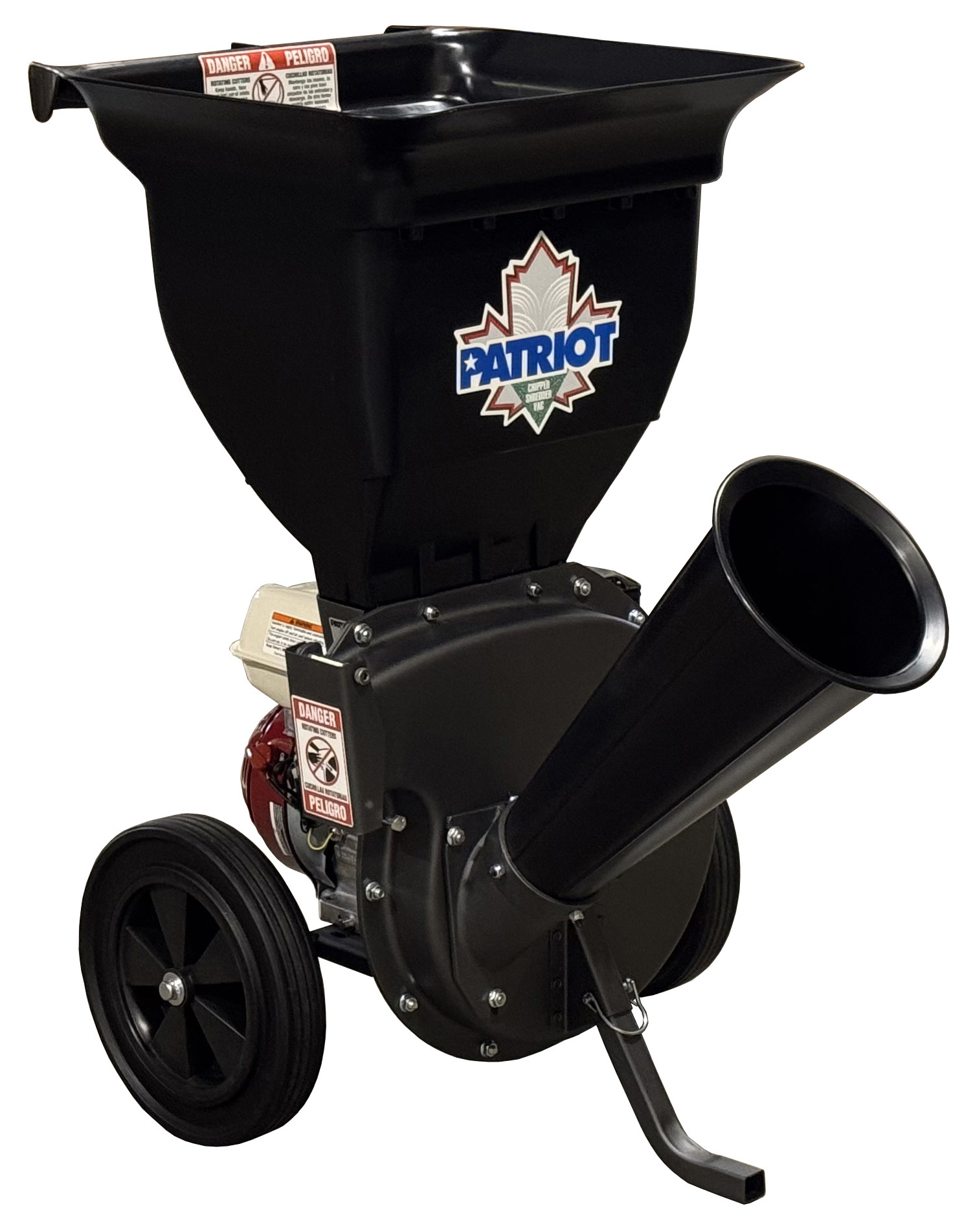

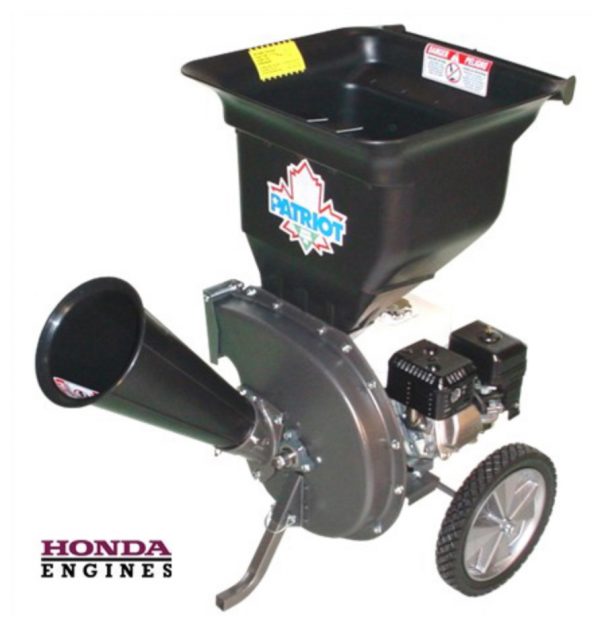

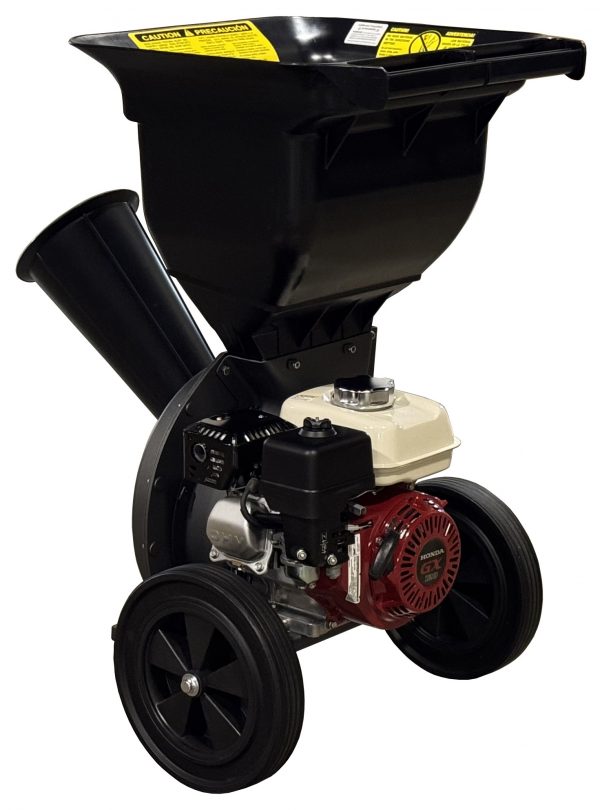

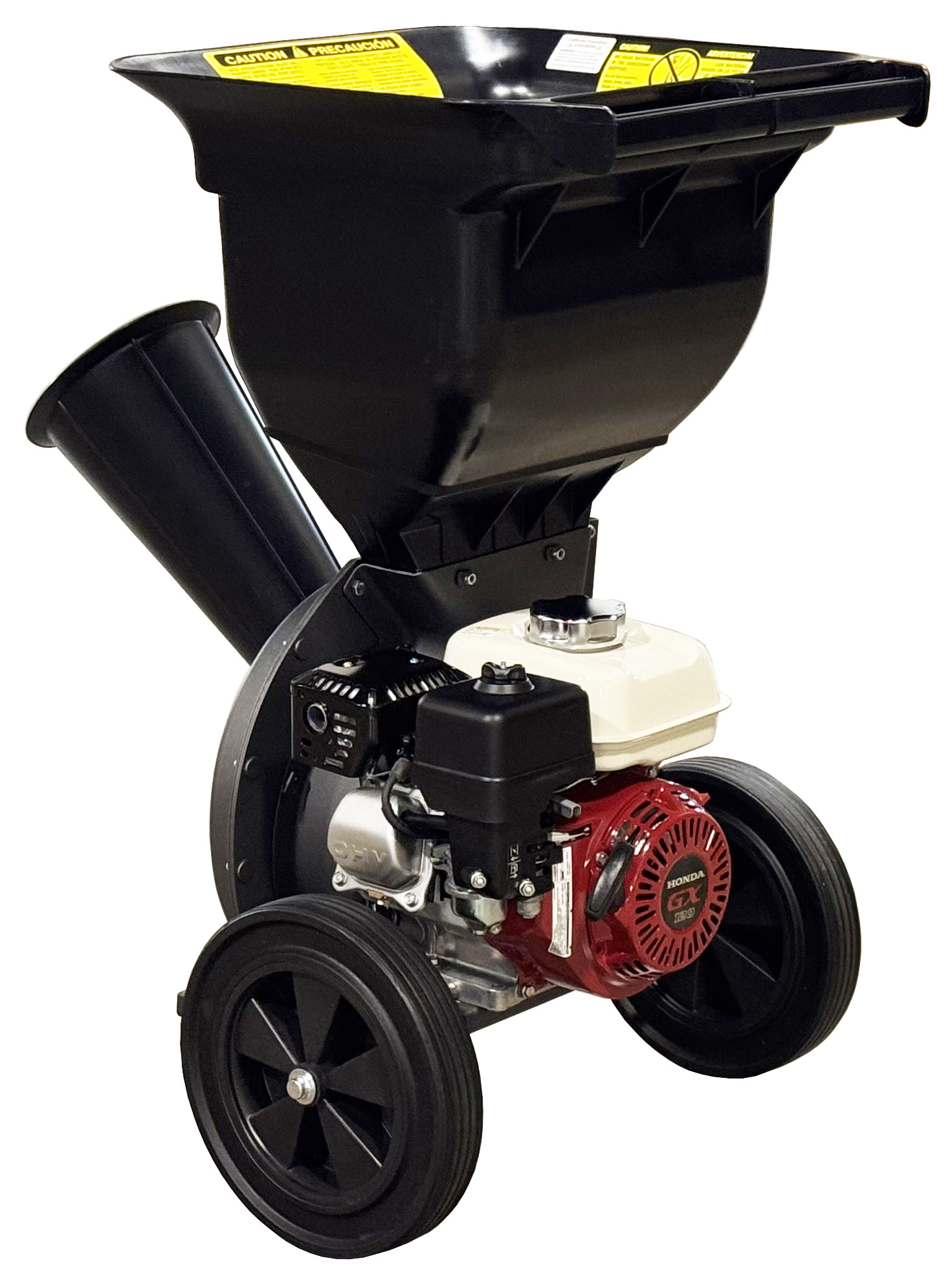

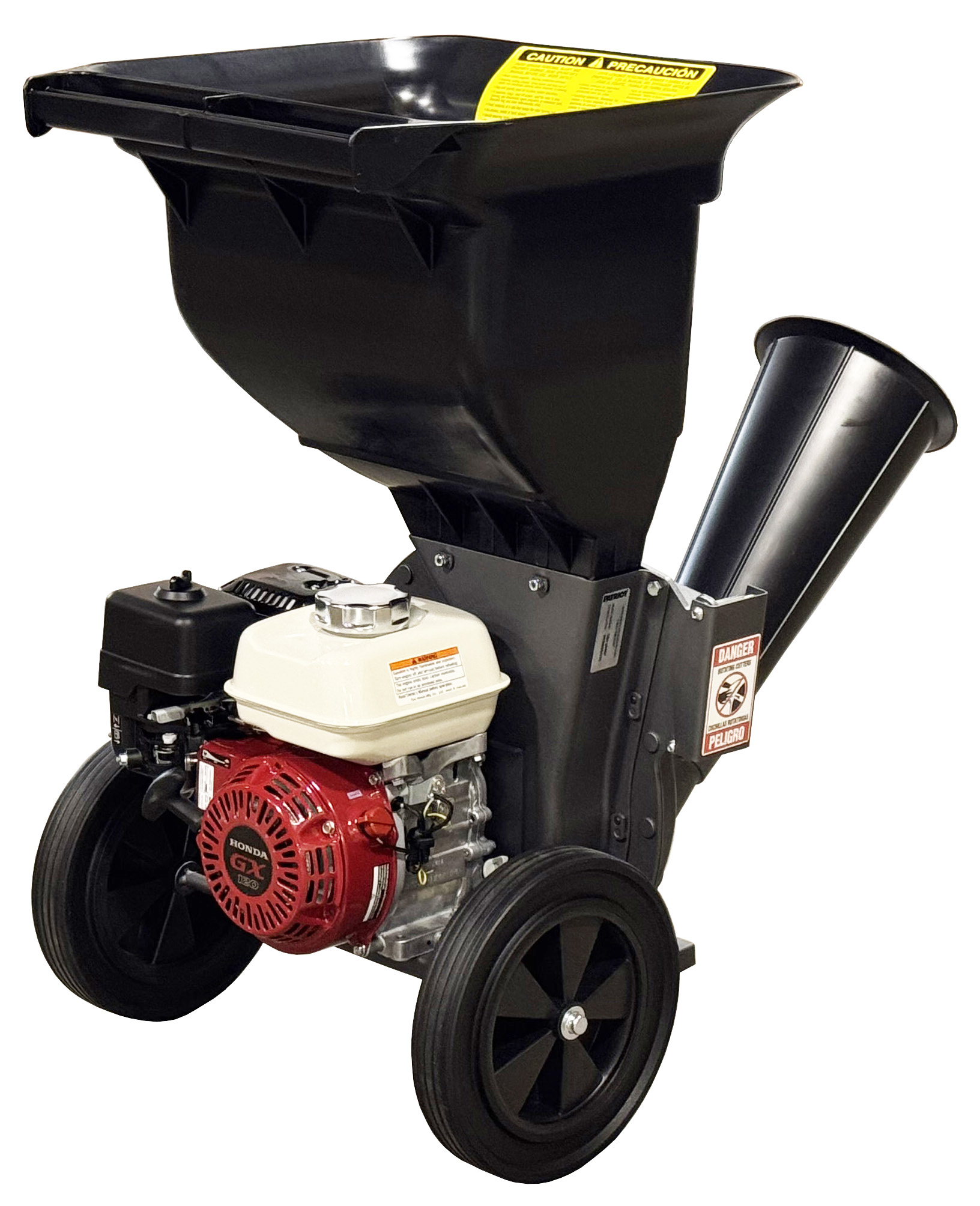

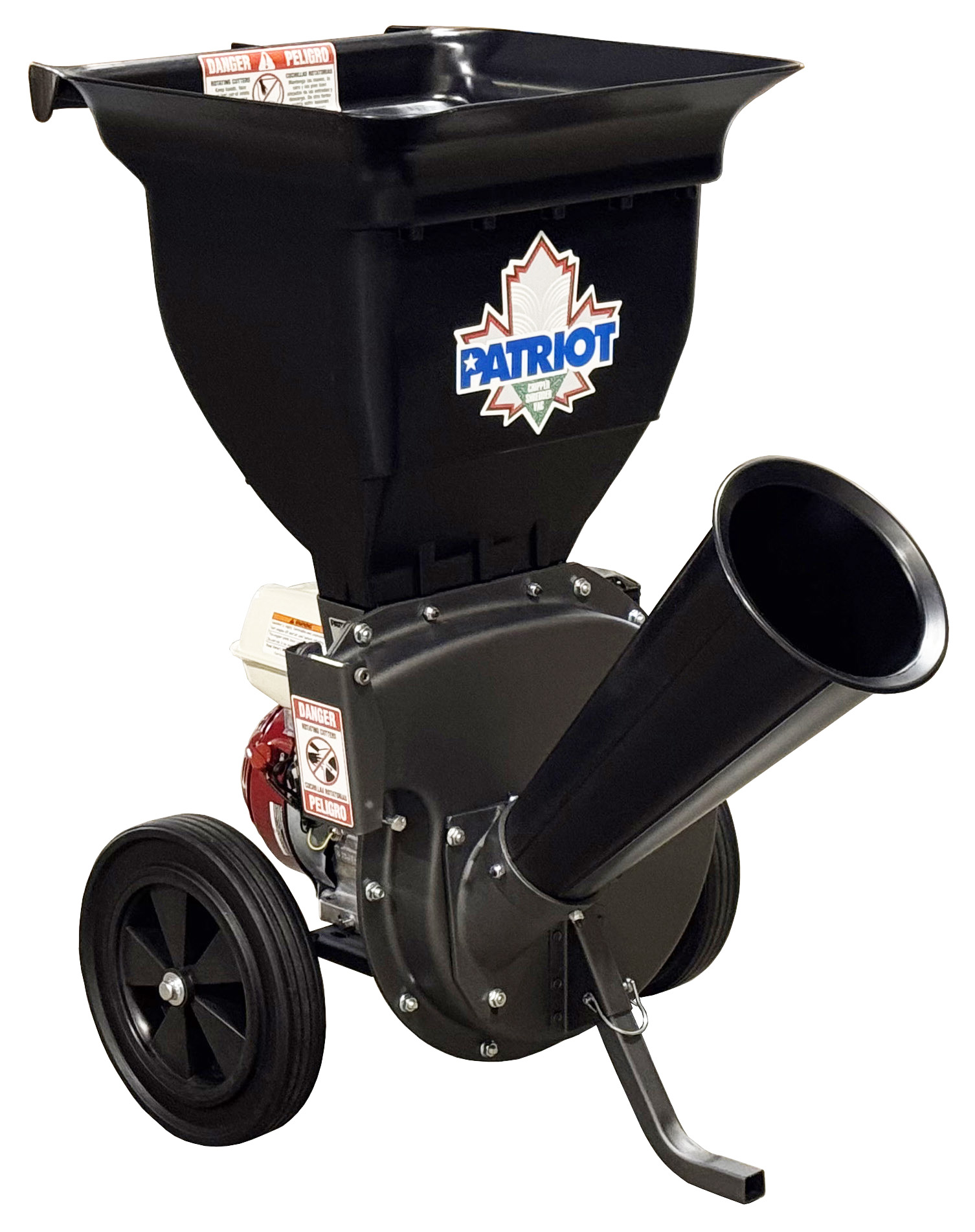

4 HP Wood Chipper Shredder, Gas Honda Engine


Part Number: CSV-2540H Categories: ,

SAVE NOW by getting FREE SHIPPING on all parts and accessories ordered at the time of your unit purchase!

Amazon Pay Available At Checkout Buy factory direct & use Amazon Pay(select Amazon Pay at Checkout)

We ship WORLDWIDE. For locations outside the 48 contiguous United States and Canada, click here to Contact Us for best available options and rates.

This chipper’s potent Honda engine won’t make you pull the cord twice.

Product Number: CSV-2540H

  • 4 hp Honda easy pull, quite, smooth running, long lasting GX series commercial grade gas engine
  • Chips rigid materials such as branches up to 2 ½ inches in diameter
  • Great for small property owners (up to ¾ acre) shredding leaves and chipping medium sized branches

Click here for detailed gas wood chipper leaf shredder assembly instructions


Patriot Model CSV-2540H
4 hp Gas Wood Chipper Leaf Shredder

The CSV-2540H wood chipper leaf shredder features Honda’s easy starting, quiet running, GX series commercial grade engine. This fuel efficient, low exhaust work horse has an overhead valve design and low oil shutdown. The unit will chip up to a 2 ½ inch diameter branch and shred mountains of leaves. This chipper pairs Honda’s legendary reliability with Patriot’s superior design and durability. Our model CSV-2540H is ideal for the homeowner who truly appreciates a superior product that can work all day.

Click above on the WHY PATRIOT tab to see detailed product information and why you should buy a Patriot

See video of Patriot products in action

Click here to see Patriot chipper shredder output samples

Part No. Description – Click below on the product descriptions to see product details or to order Price
CSV-2540H Patriot Model CSV-2540H Gas Wood Chipper Leaf Shredder $1699.00
888000266 Patriot Mini Grease Gun
888000227 Patriot CSV Chipper Buddy $75.00
888000061 Spare “Standard” CSV Collection Bag $60.00
888000100 “Jumbo” CSV Leaf Collection Bag $70.00
888000232 Gator Grabber $75.00
888000082 CSV Cover $85.00
888000064 CSV Tow Bar $180.00
990000012 Spare Chipper Knife Kit For CSV-2540H
NOTE: THE CHIPPING KNIFE OF YOUR PATRIOT WOOD CHIPPER SHOULD BE SHARPENED AFTER EVERY 6 TO 8 HOURS OF ACTUAL CHIPPING TIME. Frequently, customers that plan to do a lot of chipping will order a spare knife kit so they don’t have to stop in the middle of a project to sharpen the knife.
993090032 Spare Shredding Y-hammers Kit For CSV-2540H $85.00

Additional information

Weight 120 lbs
Dimensions 24 × 26 × 28 in

Why Patriot?

Why Buy a CSV-2540H

Is this the right model for you?

Our model CSV-2540H is identical to our model CSV-2515 except that it is powered by Honda’s easy starting, quiet running, GX series commercial engine. Like our model CSV-2515, the CSV-2540H is ideally suited for the smaller property owner (up to ¾ acre) whose primary intent is to shred up leaves and other vegetative matter, yet it still has the power to chip up those smaller branches (up to 2 ½ inches in diameter) generated during routine yard maintenance. The CSV-2540H is great for those smaller property owner’s that don’t have easy access to a dedicated electrical circuit or need to work more than 100 feet from an electrical outlet.

Why Buy A Patriot?

Easy to Load Shredding Hopper

Patriot’s CSV-2540H has a large hopper to allow easy loading of leaves and vegetative material into the machine for shredding. The opening at the top of the hopper is 16″ long and 14″ wide so you can easily deposit debris for processing.

See video of Patriot’s products in action

Just for reference, the opening at the base of the hopper narrows to 7″ long x 2″ wide. So if you were hoping to shred whole coconuts or grapefruit, this isn’t the machine for you.

Tapered Chipping Cone

Patriot’s CSV-2540H has a tapered chipping cone that makes it easy to feed rigid materials such as branches and sunflower or corn stalks into the chipper. The opening at the top of the cone is 7″ in diameter so you can easily deposit debris for processing without pruning them down to perfectly straight pieces with no offshoots.

See video of Patriot’s products in action

The opening at the base of the cone limits the diameter of materials to be chipped to 3″.

Heavy Rotor

Now that your yard waste has safely entered our electric wood chipper leaf shredder it meets a formidable opponent, the rotor. Weighing in at just over 13 pounds and measuring roughly 12″ in diameter, this is where things happen!

In this photo you see the front of the rotor and this unit’s one chipping knife (painted blue here for ease of identification). Patriot’s chipping knives are made of high quality tool steel, selected for its toughness, and are heat treated for wear resistance. Spinning past the end of the chipping cone the chipping knife is ready, willing, and able to turn your freshly pruned branches into coin-sized chips that make great mulch. Single handedly, this knife can reduce the volume of your freshly pruned branches by as much as 20:1. To sharpen the knife, simply remove the 3 nuts that attach the chipper cone to the housing and the 2 screws that attach the knife to the rotor. Sharpen using a simple wet stone or high quality file.

Click here to see Patriot chipper shredder output samples

It merits taking a moment here to point out that any wood chipper that uses chipping knives is designed to process FRESHLY CUT BRANCHES. The chipping knives are able to slice through this fresh material which makes for smoother, faster, easier chipping. We realize that everyone gets the occasional dead branch that falls out of a tree that needs to be chipped and the unit can handle those occasional branches. However, you will be sorely disappointed if you are intending to purchase this chipper to get rid of that mountain of nearly petrified wood that your spouse has been nagging you about for years.

While the chipper knives do their job with a touch of finesse, the y-hammers (painted blue here for ease of identification) are the bullies of the chipper shredder rotor. These six thick, heavy, hardened pieces of steel will beat and tear apart material dropped in the hopper. Dried leaves will be pulverized and slightly greener materials will be beaten to a pulp. Working together, the y-hammers provide a volume reduction of about 8:1 for leaves.

Click here to see Patriot chipper shredder output samples

Commercial Grade Power Source

Since the CSV-2540H is based on the CSV-2515 design, it also needs to be easy to start, light, and run quietly and smoothly. That is why Patriot chose to use Honda’s GX series commercial grade engine. It’s reliability and performance are why it’s the number one choice of rental centers, professional landscapers, and municipal work crews.

Greasable Outboard Bearing

The greasable outboard bearing is one of the key features in the success of Patriot’s direct drive chipper shredder design. The bearing supports the outer end of the rotor shaft and takes a significant amount of weight and stress off of the engine shaft. Less stress on the engine shaft translates into smoother chipping and longer engine life.


Direct Drive

Thanks to the use of our outboard bearing, Patriot is able to attach the rotor directly to the engine shaft. Most importantly this means more power! By not transferring power between belts and pulleys we do not lose power between the engine and the rotor. This also translates into no belts to break, fewer parts, less weight, and a more compact design.

Compact Size

Patriot’s chipper shredder design is very compact. At 24″ wide, 35″ long, and 37″ high, the unit requires little more space in your garage than a typical garbage can. The Patriot CSV is also small enough to fit into common vehicles such as mini vans and SUVs.

Light Weight

Weighing only 96 pounds the Patriot chipper shredder is one of the lightest units available. This makes the unit much easier to maneuver around your property or load into a vehicle for transport.

Side Discharge

Patriot’s chippers discharge processed material out of a side discharge on the unit. Use the convenient standard collection bag provided to collect the processed material and carry it to the location of your choice. If you prefer, the airflow through our unit will allow you to discharge the material a few feet away from the machine such as into a tree line.

Most of our competitors simply discharge the processed material into a pile on the ground at the base of the unit requiring it to be collected and moved in a separate operation.

Standard Collection Bag Included

Patriot provides a standard collection bag with all of its chipper shredders. This makes cleanup a breeze and allows you to easily transport the material you’ve processed.

Most of our competitors make you purchase a collection bag as an accessory, if they even offer one.

No Screens Required

Patriot’s chipper shredders turn your yard waste into fine mulch or composting material without the use of messy screens. This means no extra parts to keep track of and no screens to get clogged.

Click here to see Patriot chipper shredder output samples

Need Another Opinion?

Sure we’re a little biased about how great this unit is, but don’t just take our word for it.

Click here to review ALL of Patriot’s customer reviews and testimonials

Minimal Assembly Required

Our products are designed with the average homeowner in mind. The CSV-2540H ships via UPS or FedEx Ground in two packages. The first package contains the factory assembled lower mechanical portion of the unit. For shipping purposes, the shredder hopper and chipper cone are shipped separately. There are only a few screws and nuts to install to finish assembling your unit. Assembly is very simple and typically takes 15 to 30 minutes. Detailed instructions are provided.

Click here for detailed gas wood chipper leaf shredder assembly instructions.

Generous Warranty and Patriot’s Promise

Patriot’s goal is to provide top-notch products and back them up with a generous warranty and superior customer service. The CSV-2540H comes with a 2-year warranty for residential use. If you purchase a product factory direct from Patriot Products, Inc. you may return it for a full refund within 90 days if you are not completely satisfied.

Click here for additional details

Service/Warranty Repair

Because our products are designed with the average homeowner in mind, you can typically handle the routine maintenance of the machine without the need to take it somewhere for service.

If you need assistance servicing the machine or in the unlikely event that you need a warranty repair, the best thing to do is contact us first. While we have dealers and service centers that are familiar with our products, we can work with you to find a reputable outdoor power equipment center close to you that can service your product.

Still Have Questions?

Don’t despair, call us at 1-800-798-2447 or email us at info@patriot-products-inc.com

We want you to have all of the facts so that you purchase the product that is right for you.

Chipper Reviews

Click here to review ALL of Patriot’s customer reviews and testimonials

CSV-2540H – 5 out of 5 stars – Patriot Customer Review – Posted 02/23/23

This product has been extremely dependable and effective. I use it about 4 times a year and it starts up with ease each time and does a great job of shredding smaller branches and acres of Sycamore leaves. I Highly recommend it. If there is anything that can be improved I suggest a stronger/tougher collection bag. I have been through a few, but to be frank I have not compared it to other products on the market and It might well be one of the better ones.

The strongest praise I can offer potential buyers is for the service provided by Patriot. When you pick up the phone there is someone there that genuinely cares about the use and success of their products… not just making a sale. In today’s Amazon culture, thats more than a bonus.

By Raymond, Malibu, CA

CSV-2540H – 5 out of 5 stars – Patriot Customer Review – Posted 02/22/23

I have never done anything as far as maintenance for our Patriot Chipper and it still starts up quickly and reliably. Since we have been using it for over five years, it does jam more on larger pieces, but I think it just means I finally have to get the blades sharpened. The only thing I would change is to get a larger one. When the time comes we will get another Patriot Chipper.

By Adam, Farragut, TN

CSV-2540H – 4 out of 5 stars – Amazon Customer Review – Posted 02/23/15

Arrived in a very secure packing, no issues, Easy to assemble – although a few parts of the instruction could be a little clearer – primarily around the main hopper. Honda engine started on second pull. I have used it with no issues but not five stars yet because I have not really stressed it.
By Edward, Houston, TX

CSV-2540H – 5 out of 5 stars – Amazon Customer Review – Posted 07/31/14

I researched before choosing this model. I didn’t know much about chippers or shredders but I had so many branches down after Hurricane Sandy I had to do something. I love Honda motors, we got a Honda generator too. Very reliable. I am very happy with this choice. Now I want to go get everyone else’s leaves this fall and shred them to use as mulch in my garden!
By Sorrisi

5.0 out of 5 stars“Great Wood Chipper”

“Let me say how much I enjoyed using my Patriot chipper-shredder today. I was like a little girl on Christmas morning.”
Vi, Myrtle Beach, SC

5.0 out of 5 stars“Shreds Branches Quickly”

“The 4hp Patriot chipper did a great job grinding up branches.”
Andrea, Trenton, MI

5.0 out of 5 stars“Quiet and Easy to Use”

“The Patriot 4hp chipper is easy to use, very portable, has a quiet motor and is easy to start.”
Dawn, Portage, IN

5.0 out of 5 stars“Compact and Powerful”

“Easy to store..does not take up much room. Also looks well built. Your machine is a brute.”
Joe, Agoura Hills, CA

5.0 out of 5 stars“Well Built Chipper Shredder”

“I was a little dubious buying something sight unseen…This letter is to tell you how pleased I am with your machine.”
Chris, Farmers Branch, TX

Spare Parts

Genuine Patriot Replacement-Parts Specific To The Current: CSV-2540H Wood Chipper Leaf Shredder

Note: Most parts apply to all existing Patriot CSV-3065B Wood Chippers. If you can’t find the part you need listed below, CLICK HERE for a complete list of available Geniune Patriot Wood Chipper Leaf Shredder Replacement-Parts.

CLICK HERE for an Illustrated Parts-Breakdown Specific To The Current: CSV-3065B Wood Chipper Leaf Shredder.

This list identifies all of the parts required to build this product:
Ill. # Part # Click below on the part descriptions to see part details Qty
1 888000086 Engine, CSV, 4 hp, Honda 1
2 888000210 Engine mount/axle 1
3 302010215 Grinder housing,5,6,8,10 hp 1
4 308000792 Rotor, electric w/3/4″ bore 1
5 103009035 Y-hammer 6
6 204009042 Y-hammer shaft, electric 4
7 211009075 Spacer A (short, plain) 2
8 211009055 Spacer B (short, w/hole) 2
8B 265001895 Roll pin sleeve B 2
9 211009355 Spacer C (long, w/hole) 2
9C 265001905 Roll pin sleeve C 2
10 810009015 Chipper knife 1
11 303010232 Center plate, 12″ 1
12 302010252 Fan housing, 12″ 1
13 888000179 Leg 1
14 400010365 Chipper cone casting 1
15 500050515 Shredder hopper, black 1
16 113010395 Discharge deflector 1
17 500050375 Chipper cone, black 1
18 114000345 Shredder hopper guard 1
700060405 Collection bag, std, 24″ x 36″ 1
20 709040005 Wheel, 12″ 2
21 888000194 Bearing, 1″ bore, greasable 1
22 706520005 HHCS, 5/16-24 x 3/4 4
23 705520005 HHCS, 5/16-18 x 3/4 2
24 751520005 HHCS, 5/16-18 x 1 3/4 2
25 705720005 BHSCS, 5/16-18 x 1/2 7
26 706850005 FHSCS, 5/16-24 x 5/8 2
27 888000079 HHCS, 5/16-24 x 5 1/2 1
29 705620005 Lock washer, split ring, 5/16 5
30 705320005 SFN, 5/16-18 23
31 888000042 NILN, 1/4-20 8
32 888000028 BHSCS, 1/4-20 x 1 4
33 710620005 Flat washer, USS, 1/4 8
34 700020005 TFSPPH, 14 x 3/4 5
35 717520005 HHCS, 5/16-18 x 3 1/4 1
36 710220005 Lynch pin 1
37 703200005 Roll pin, 3/16 x 3/4 4
38 888000254 Key, 3/16″ sq. x 1 1/4″ 1
39 888000193 Greasable bearing shield 1
40 709920005 Push nut, 5/8″ 2
41 800070435V Decal, CSV, danger, vertical 2
42 800070445 Decal, caution, 4″ x 9.625″ 1
43 800070435H Decal, CSV, danger, horizontal 1
44 800070455 Decal, serial number 1
45 800070832 Decal, CSV, size limit, 1/2″ 1
46 888000117 Shim, 0.375 ID x 0.062 THK 4
47 888000136 SHCS, 1/4-20 x 3/4 2
48 888000137 SHCS, 1/4-20 x 1 2
49 888000055 NILN, 5/16-18 1
50 888000037 HHTB, 5/16-18 x 3 1/2 1
51 888000105 Flat washer, SAE, 5/16 2
888000230 Allen wrench, 3/16, 6″ arm 1
719050005 Allen wrench, 5/32 1
700000005 Safety goggles 1
