Parts Kit, CSV Rotor, Tri-plate

$299.00

Part Number: 325002085B Categories: ,

This is the current replacement rotor kit for Patriot Model CSV-3090H and select older Patriot Gas Wood Chippers.

NOTE: The chipper knives ARE NOT included and must be ordered separately.

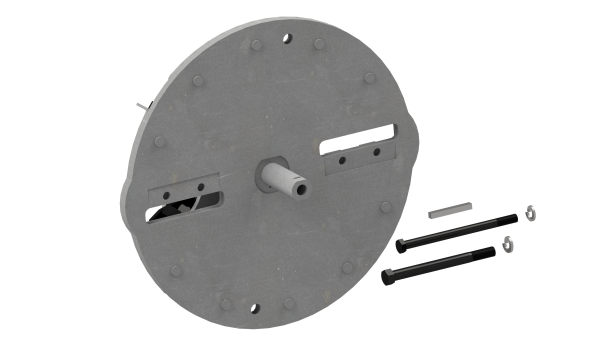

This parts kit contains the following:
Part No. Description – Click below on the product descriptions to see product details or to order Qty

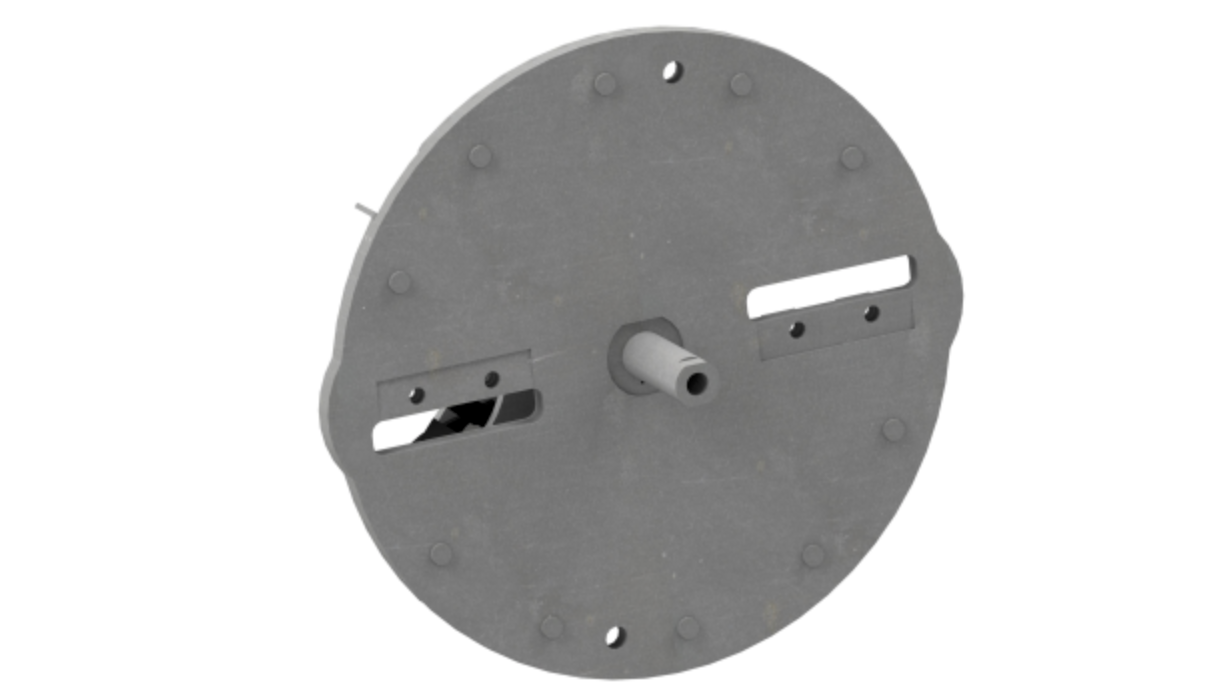

325002085 Rotor, tri-plate w/1″ bore 1

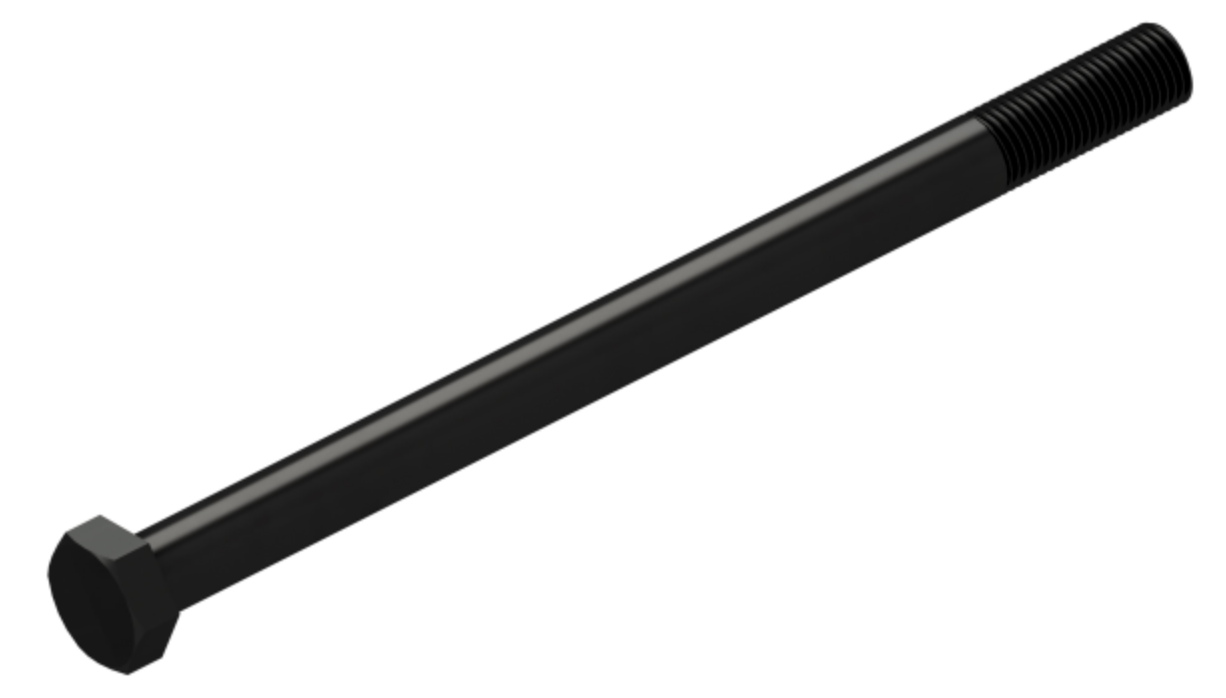

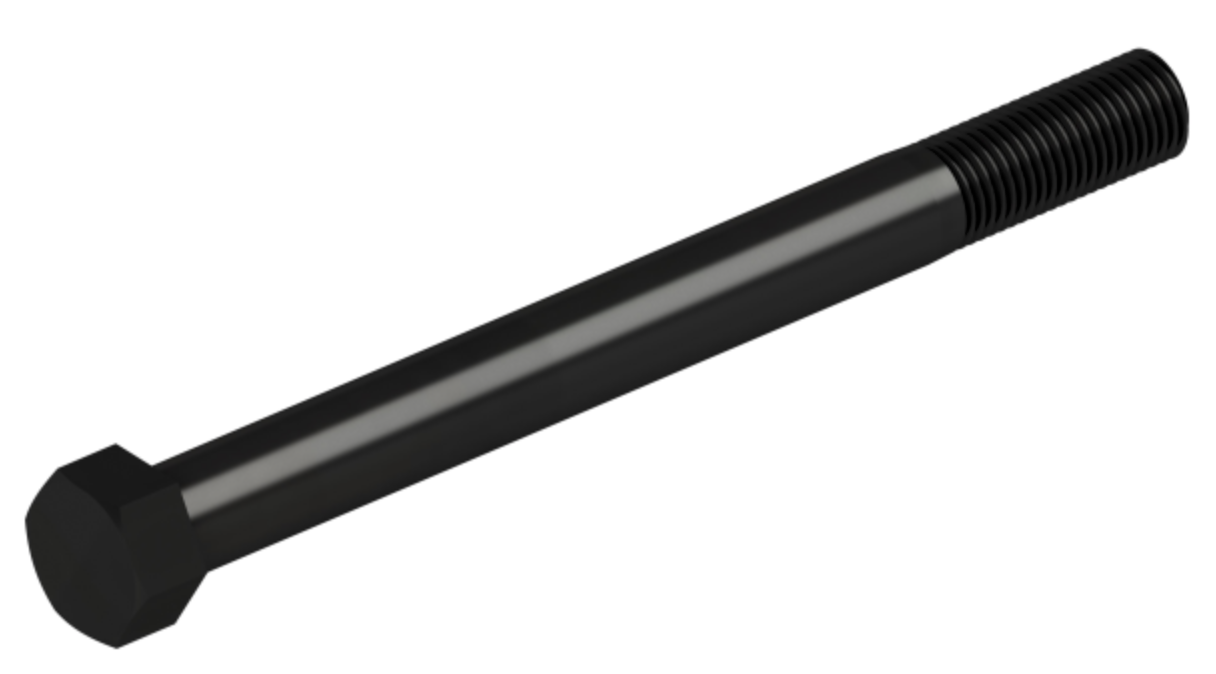

888000253 HHCS, 3/8-24 x 5 1/2 1
888000078 HHCS, 7/16-20 x 5 1/2 1

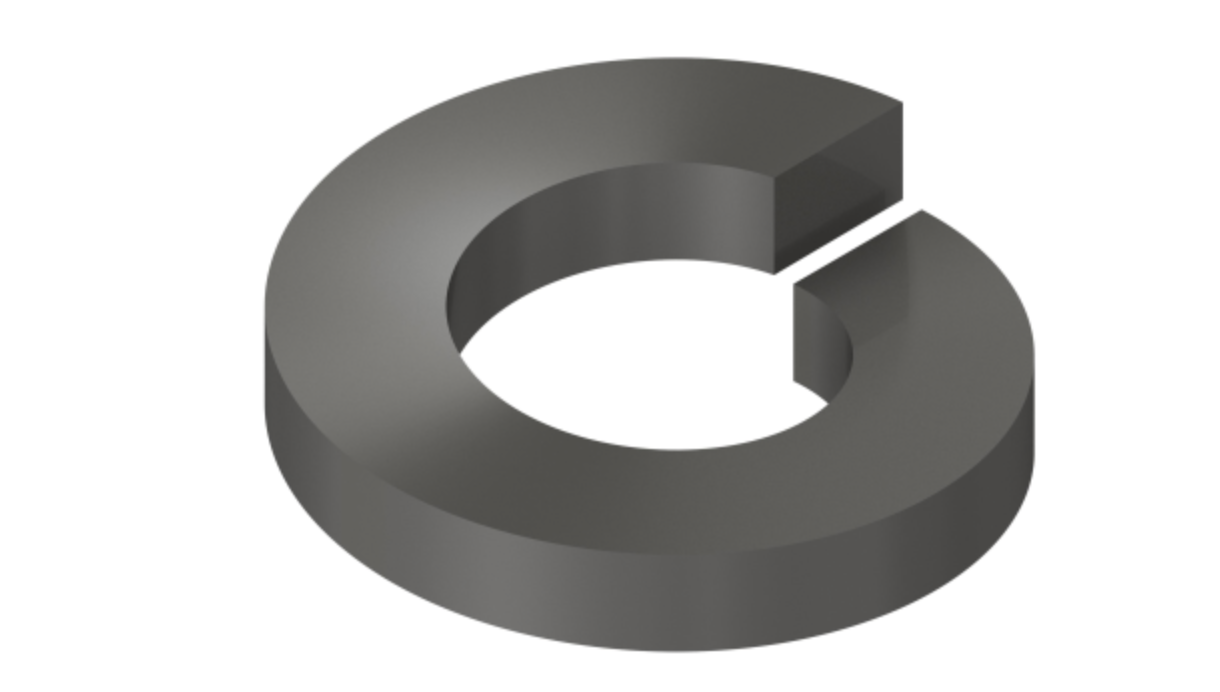

716620005 Lock washer, split ring, 3/8 1

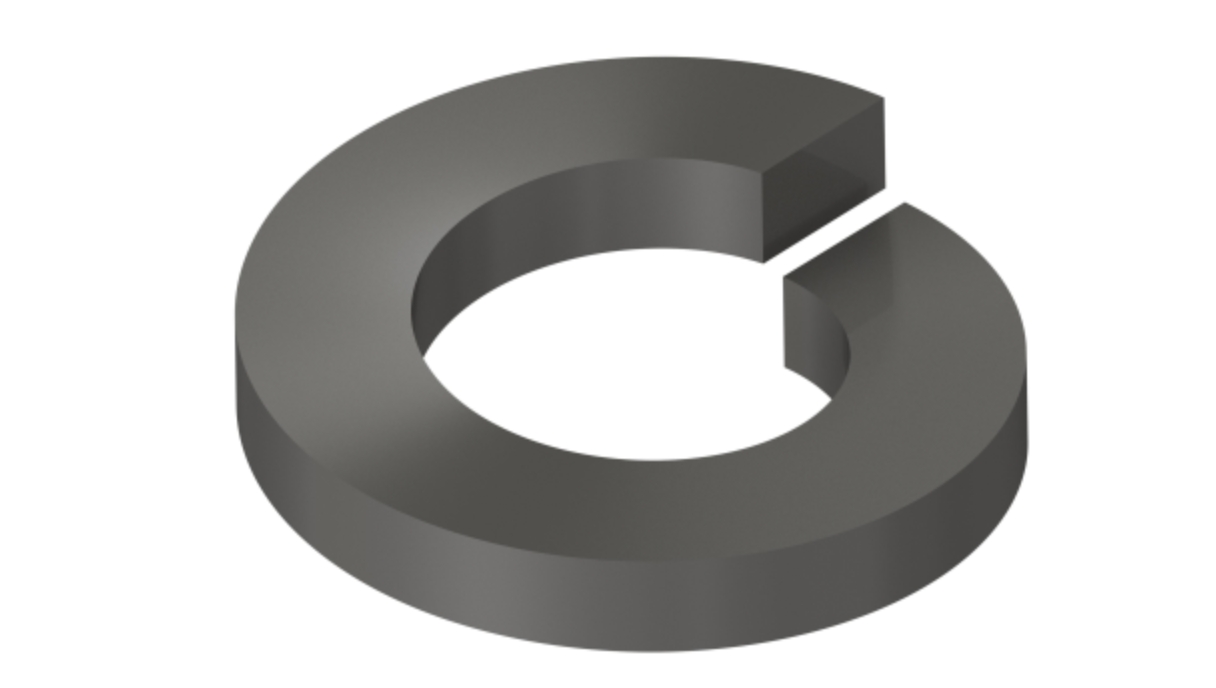

704620005 Lock washer, split ring, 7/16 1

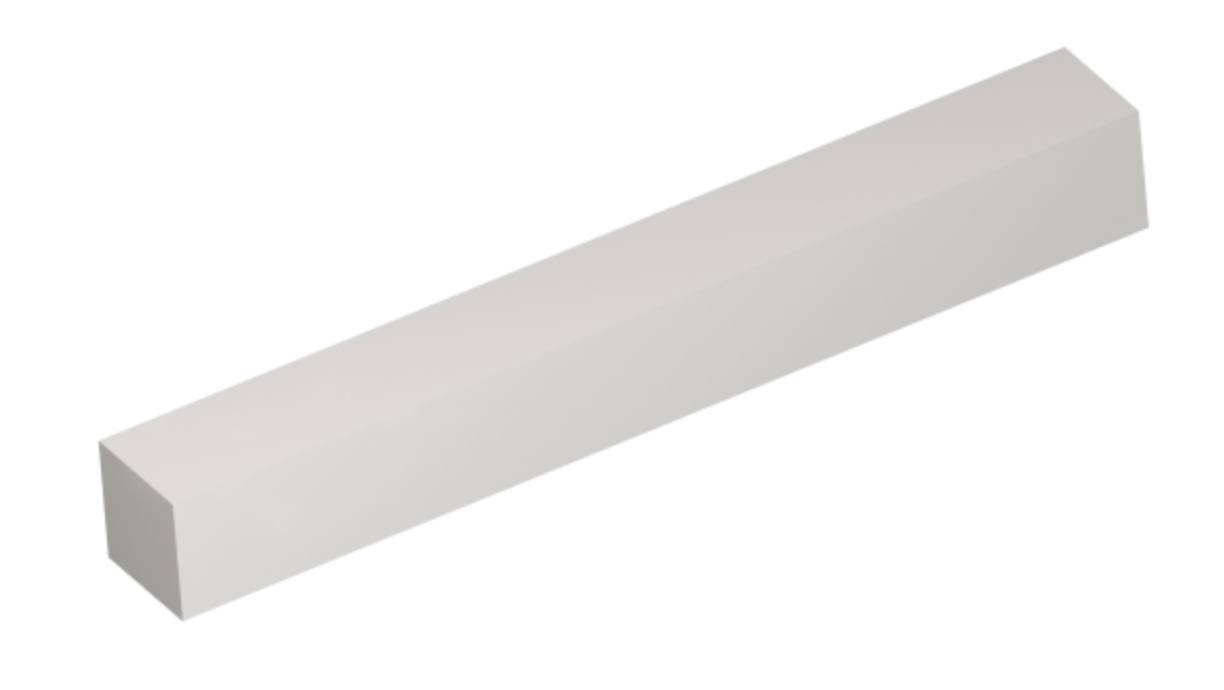

703100005 Key, 1/4″ sq. x 2″ 1

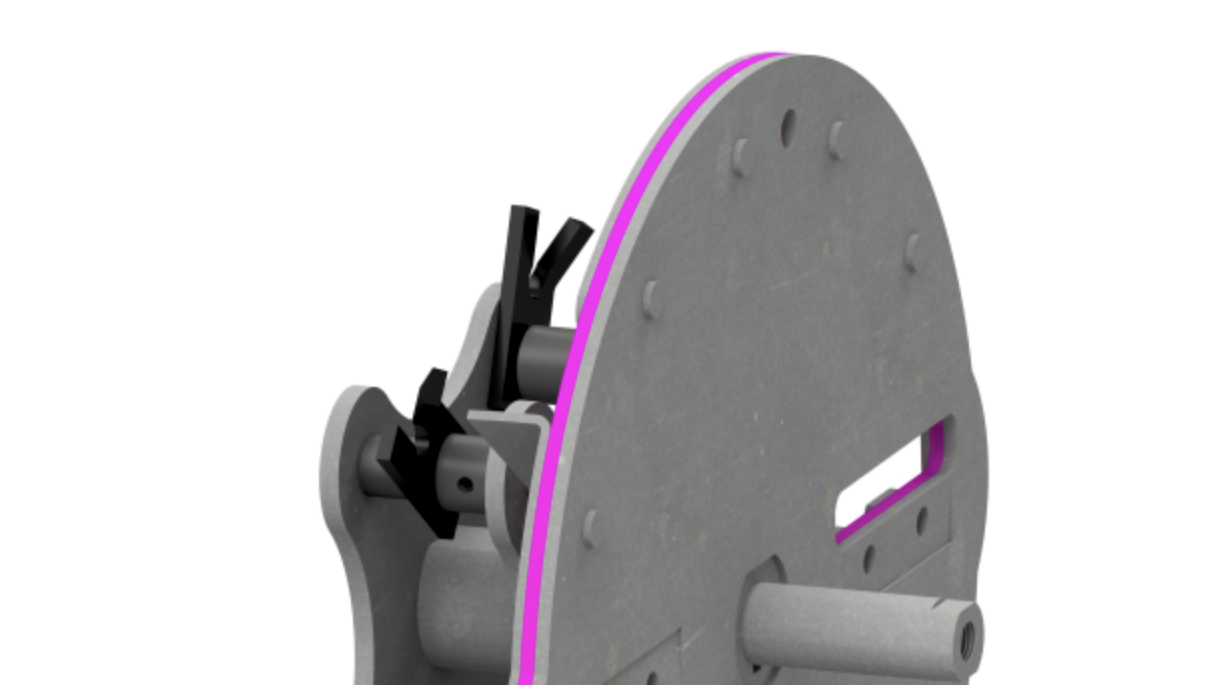

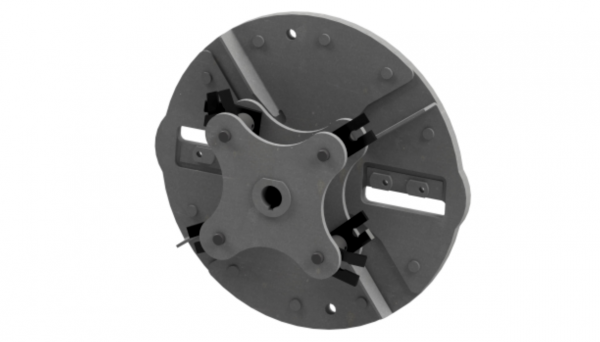

The following components are factory pre-assembled to the rotor.
103009035 Y-hammer 6
204009045 Y-hammer shaft, gas 4
211009075 Spacer A (short, plain) 2
211009055 Spacer B (short, w/hole) 2
265001895 Roll pin sleeve B 2
211009355 Spacer C (long, w/hole) 2
265001905 Roll pin sleeve C 2
703200005 Roll pin, 3/16 x 3/4 4

Additional information

Weight 29 lbs
Dimensions 15 × 15 × 9 in

You may also like…

  • Representative image of Patriot Products HHCS, 5/16-18 x 1 3/4 | Part #751520005
    #751520005

    HHCS, 5/16-18 x 1 3/4

    $0.25
    Add to cart
  • #888000001

    Engine Spacer, 9 HP

    $36.00
    Add to cart
  • Representative image of BHSCS, 5/16-18 x 1/2 | Part #705720005
    #705720005

    BHSCS, 5/16-18 x 1/2

    $0.25
    Add to cart
  • Replacement Engine Mount and Axle for the Patriot CSV-3090H Gas Wood Chipper
    #300010690

    Engine Mount/Axle, 9 HP

    $93.00
    Add to cart

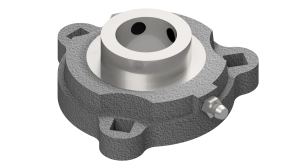

  • Greasable bearing for CURRENT Patriot Wood Chippers
