Parts kit, CSV rotor, electric

Call 262.523.4580 to get help
or place an order by phone

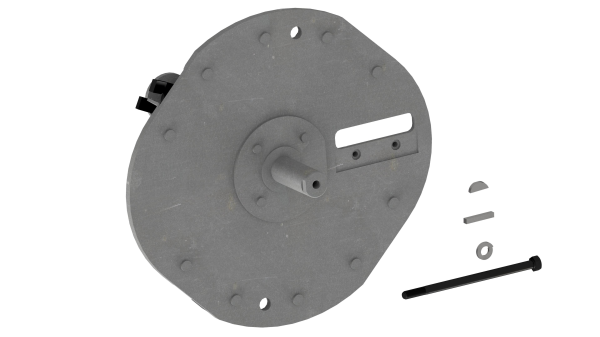

Unable to display image of Parts kit, CSV rotor, electric | Part #308000792B

Click on Image to Enlarge

Click for additional views:

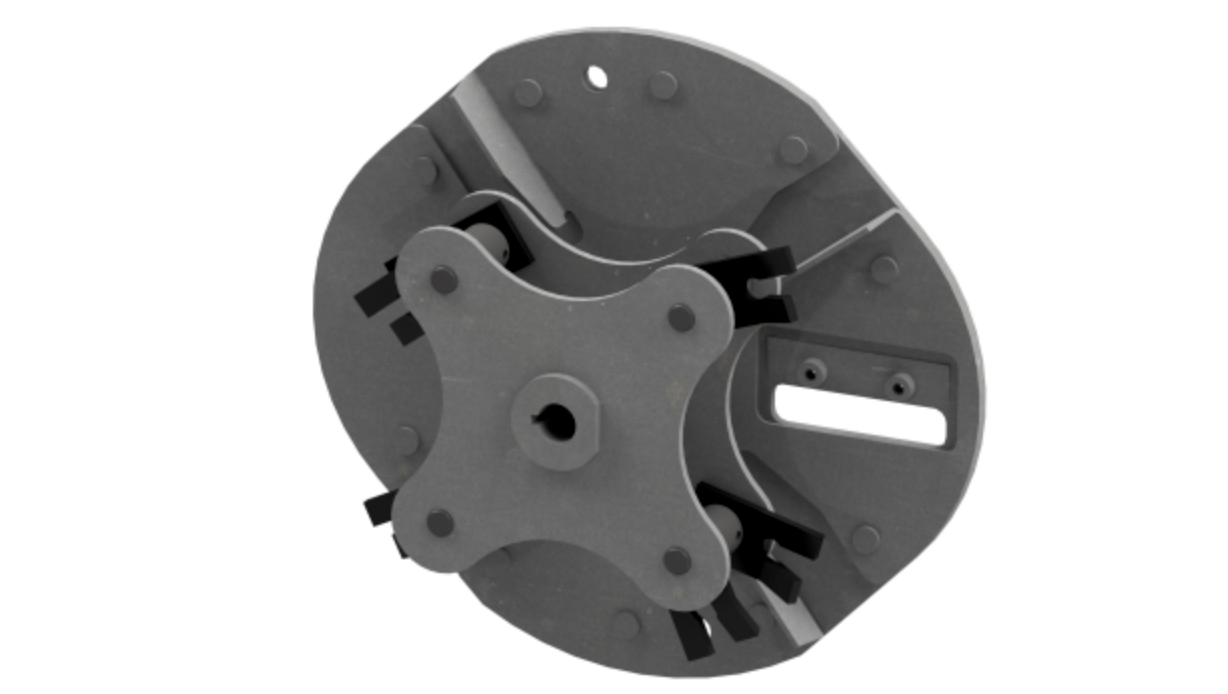

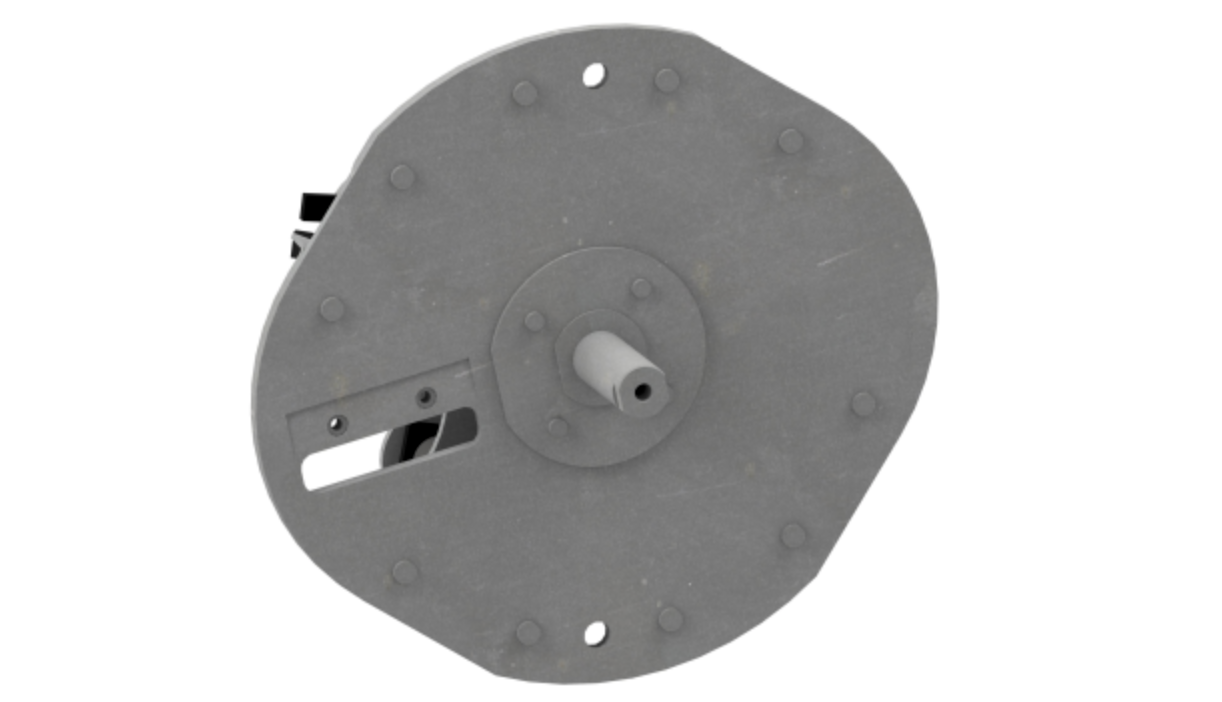

Unable to display image of Rotor, electric w/3/4" bore | Part #308000792
Unable to display image of Rotor, electric w/3/4" bore | Part #308000792

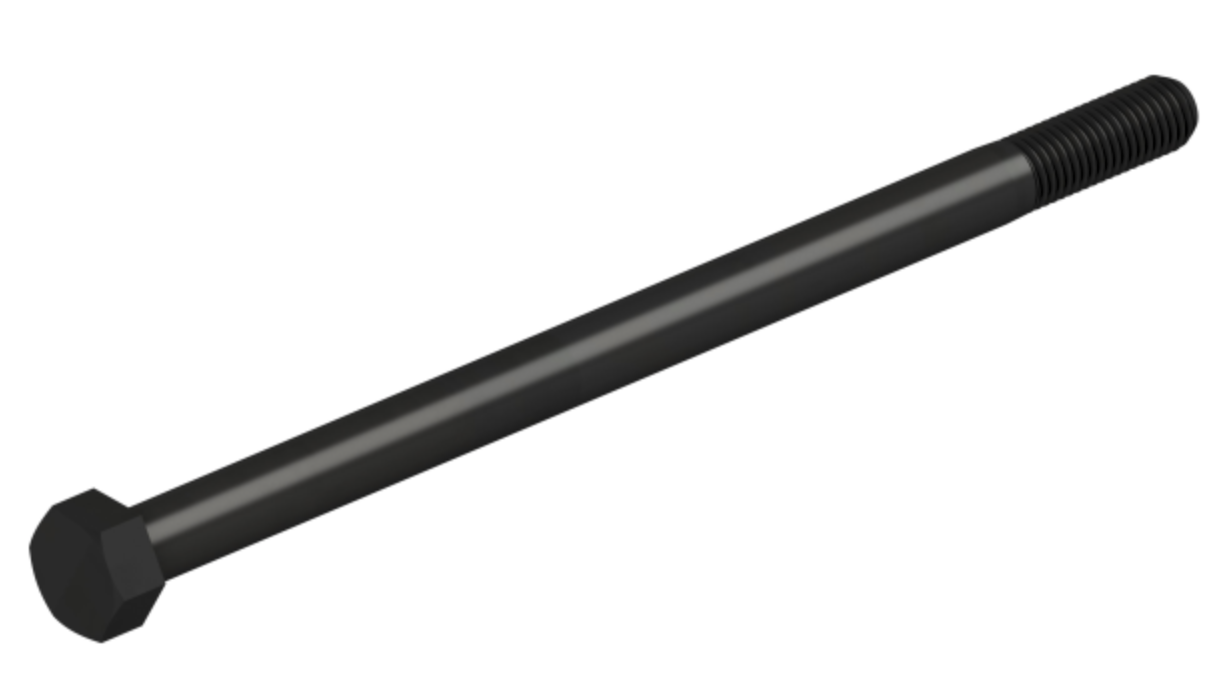

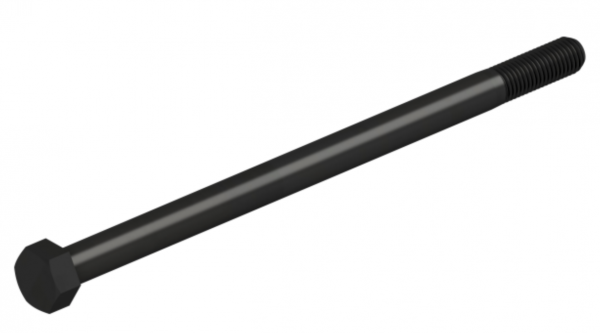

Unable to display image of HHCS, 5/16-24 x 5 1/2 | Part #888000079

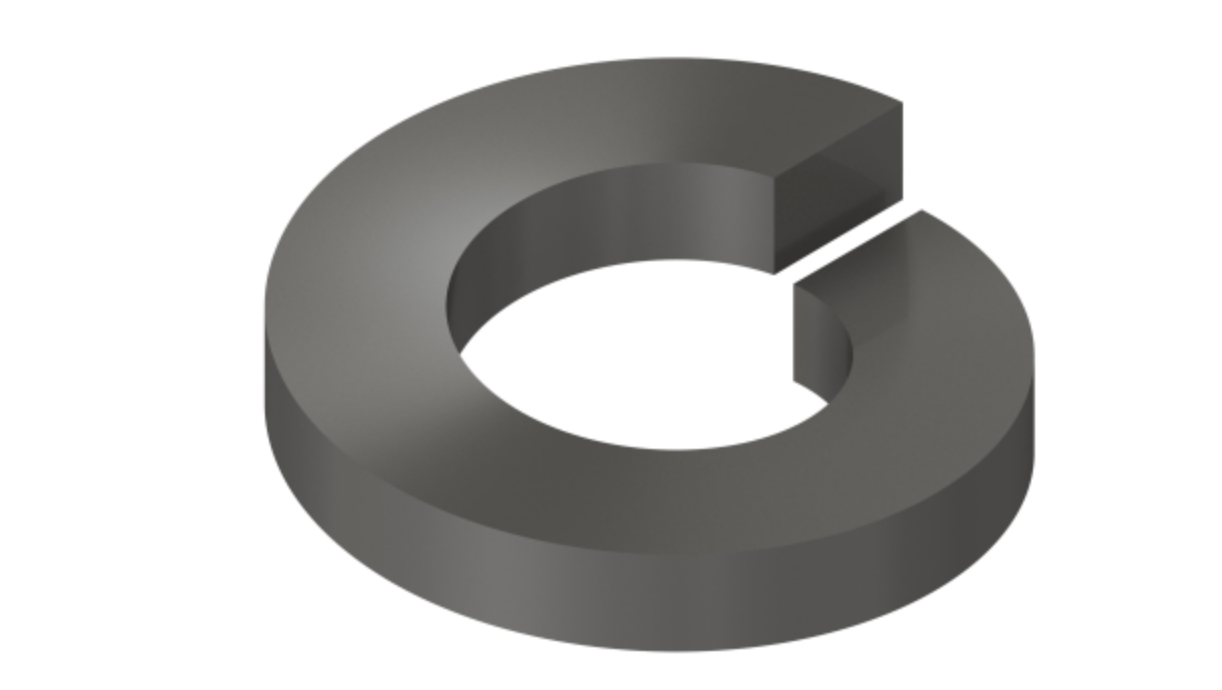

Unable to display image of Lock washer, split ring, 5/16 | Part #705620005

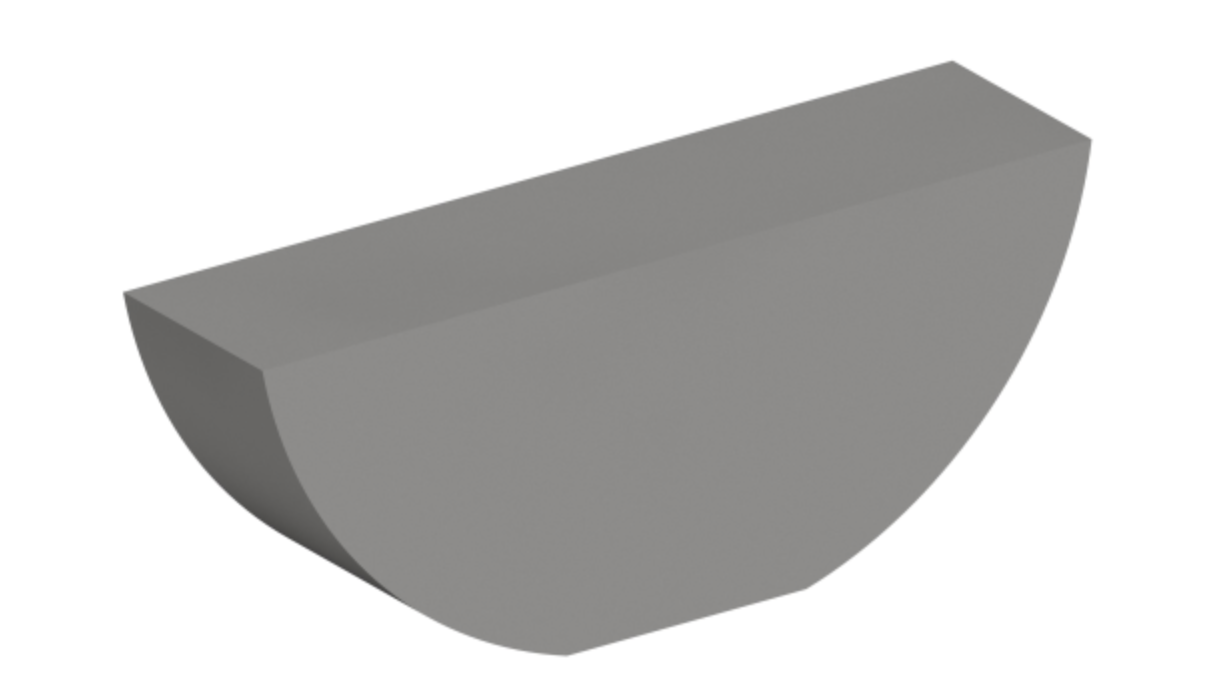

Unable to display image of Key, Woodruff, #9, 3/16 x 3/4 | Part #763100002

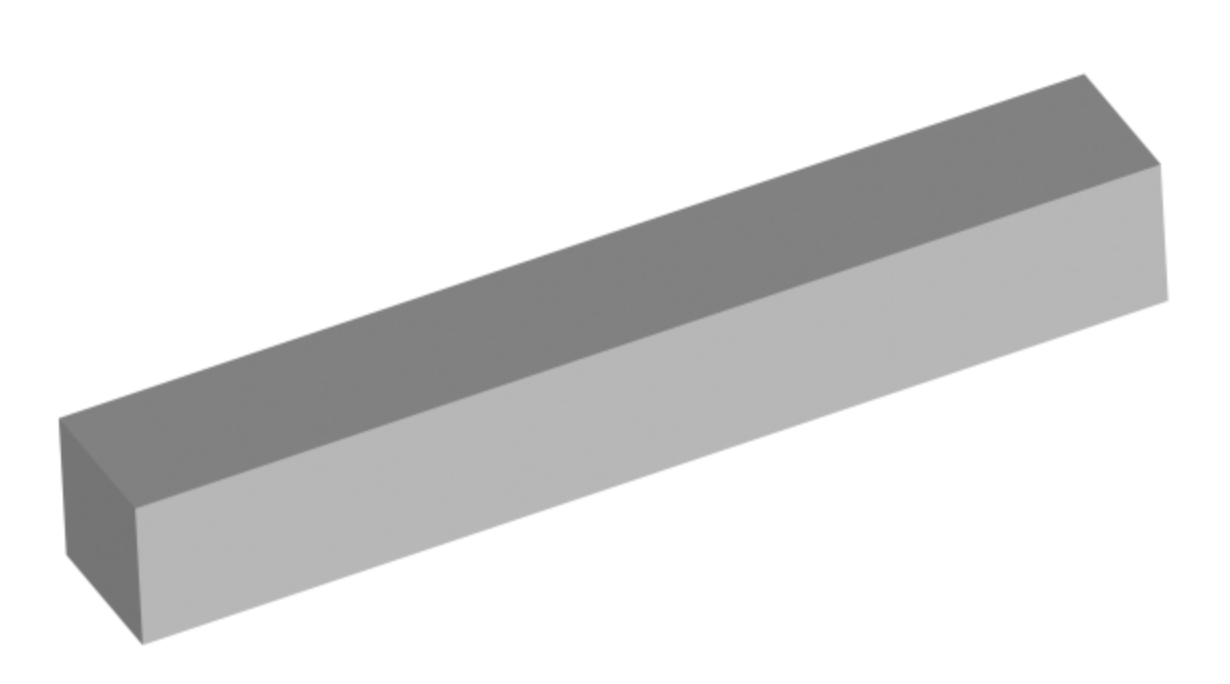

Unable to display image of Key, 3/16" sq. x 1 1/4" | Part #888000254
Product Number: 308000792B
$277.00
Select Quantity:

This is the current replacement rotor kit for all Patriot Electric Wood Chippers, as well as, Patriot Model CSV-2540B and CSV-2540H Gas Wood Chippers.

NOTE: The chipper knife IS NOT included and must be ordered separately.

This parts kit contains the following:
Part No. Description - Click below on the product descriptions to see product details or to order Qty
308000792 Rotor, electric w/3/4" bore 1
888000079 HHCS, 5/16-24 x 5 1/2 1
705620005 Lock washer, split ring, 5/16 1
763100002 Key, Woodruff, #9, 3/16 x 3/4 1
888000254 Key, 3/16" sq. x 1 1/4" 1
The following components are factory pre-assembled to the rotor.
103009035 Y-hammer 6
204009042 Y-hammer shaft, electric 4
211009075 Spacer A (short, plain) 2
211009055 Spacer B (short, w/hole) 2
265001895 Roll pin sleeve B 2
211009355 Spacer C (long, w/hole) 2
265001905 Roll pin sleeve C 2
703200005 Roll pin, 3/16 x 3/4 4
