Parts kit, CSV rotor, 14"

Call 262.523.4580 to get help
or place an order by phone

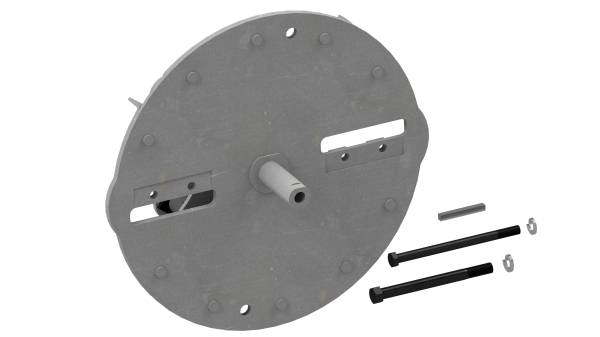

Representative image of Patriot Products Parts kit, CSV rotor, 14" | Part #325000615B

Click on Image to Enlarge

Click for additional views:

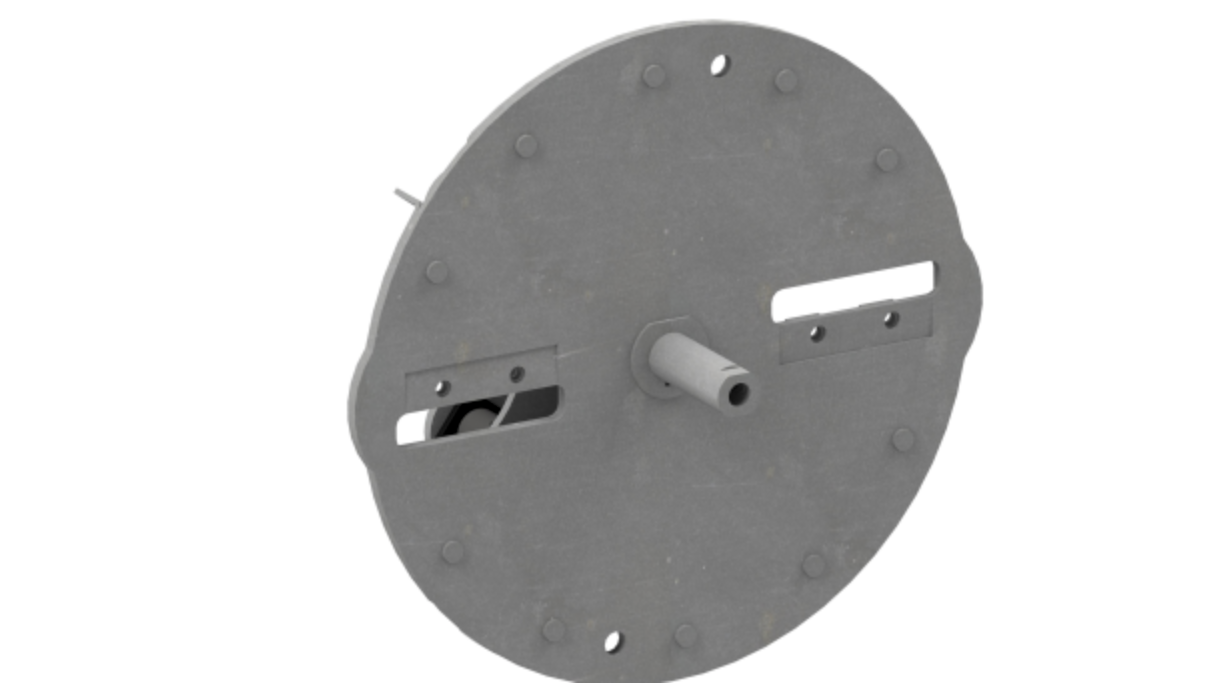

Representative image of Patriot Products Rotor, 6, 8, 10 hp w/1" bore | Part #325000615

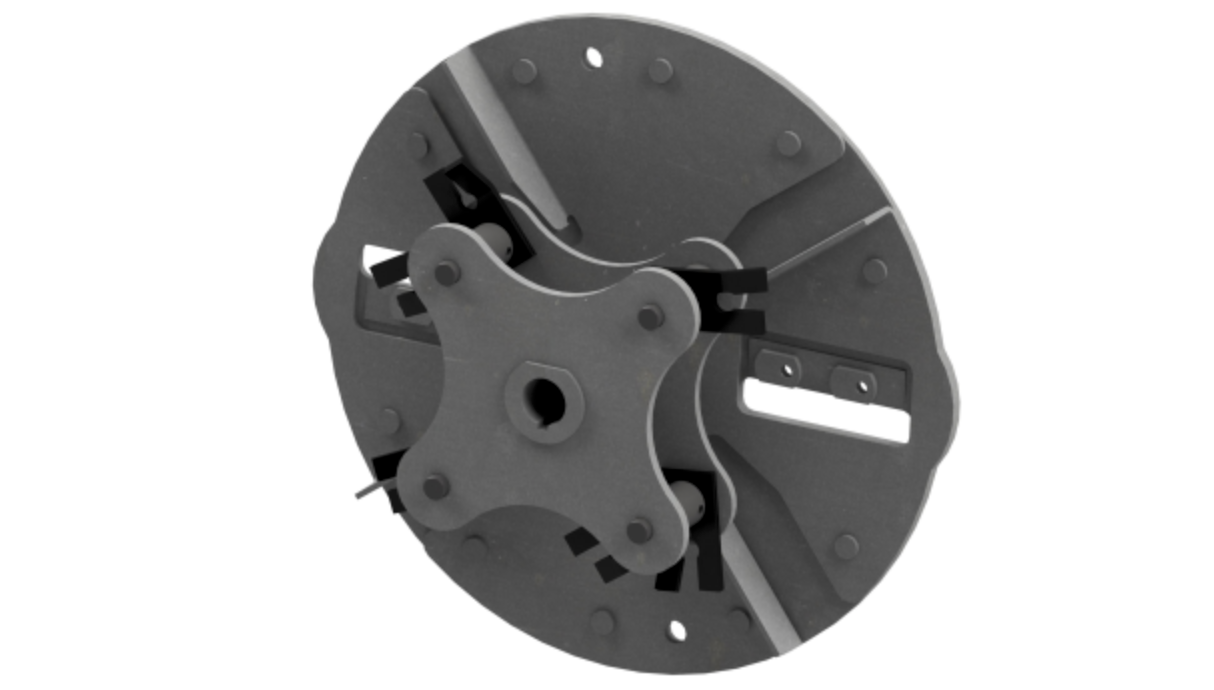

Representative image of Patriot Products Rotor, 6, 8, 10 hp w/1" bore | Part #325000615

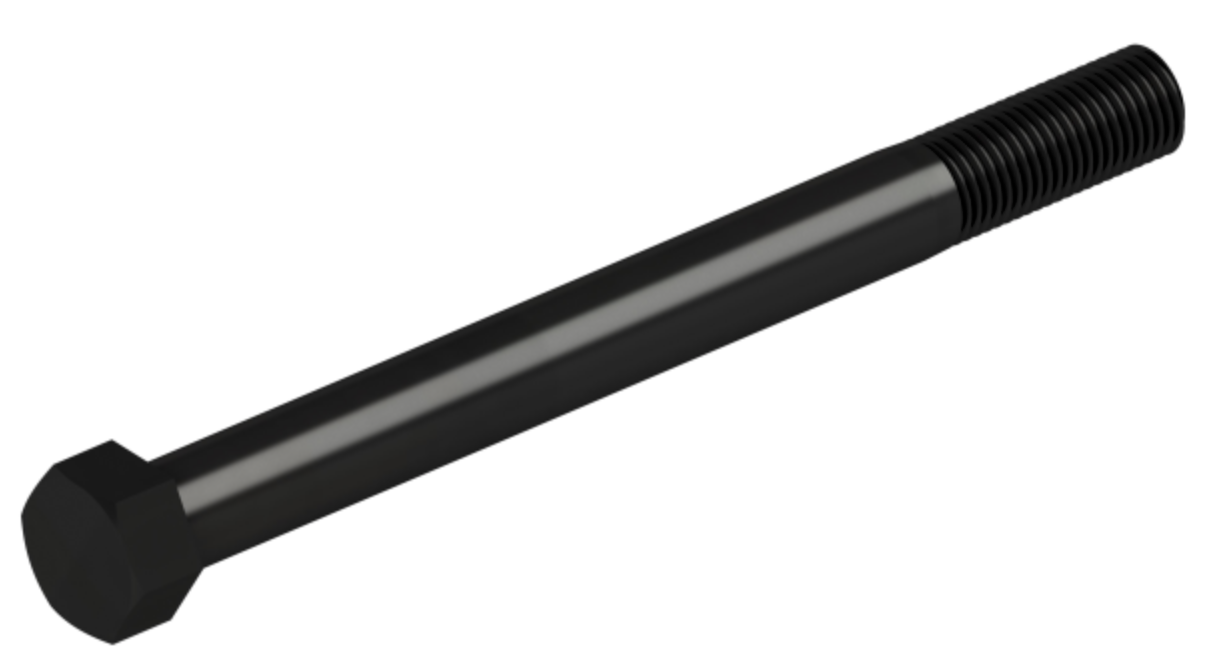

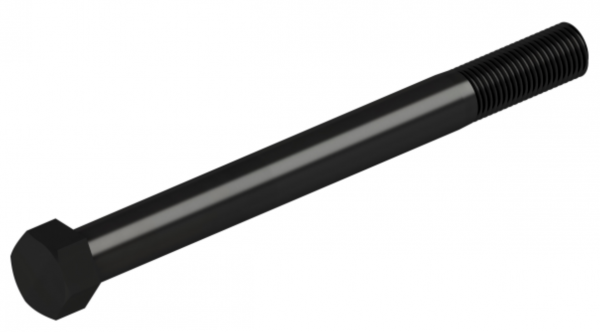

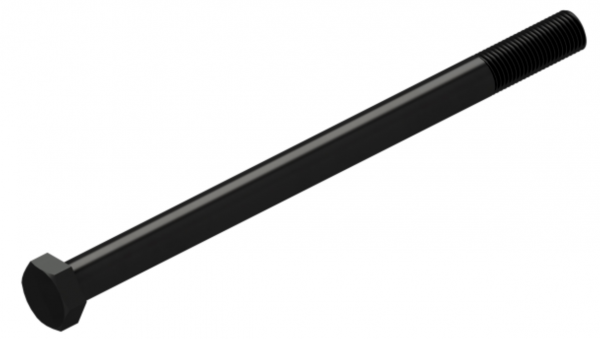

Representative image of Patriot Products HHCS, 3/8-24 x 5 1/2 | Part #888000253

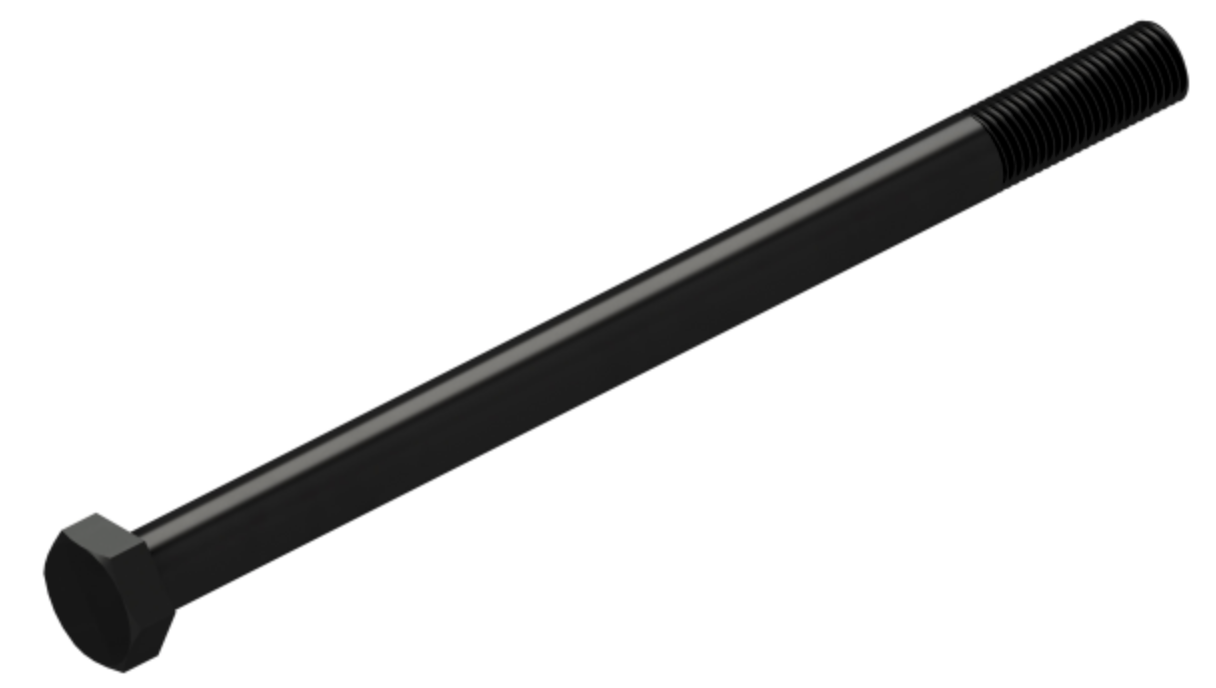

Representative image of Patriot Products HHCS, 7/16-20 x 5 1/2 | Part #888000078

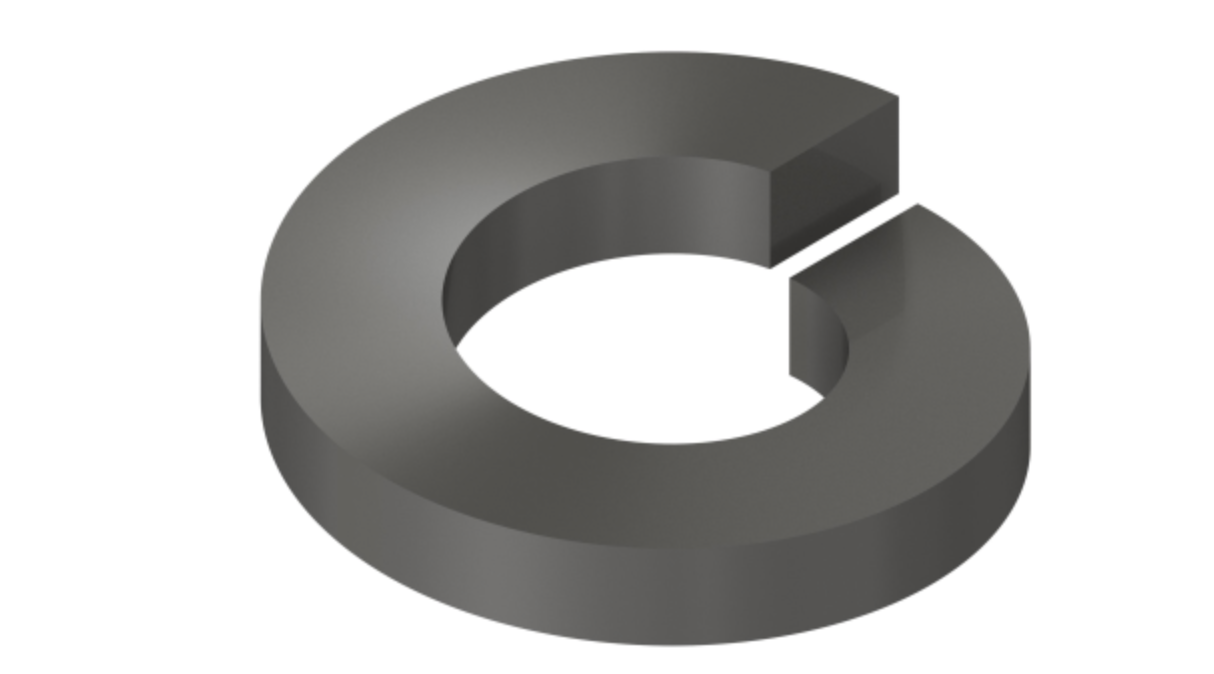

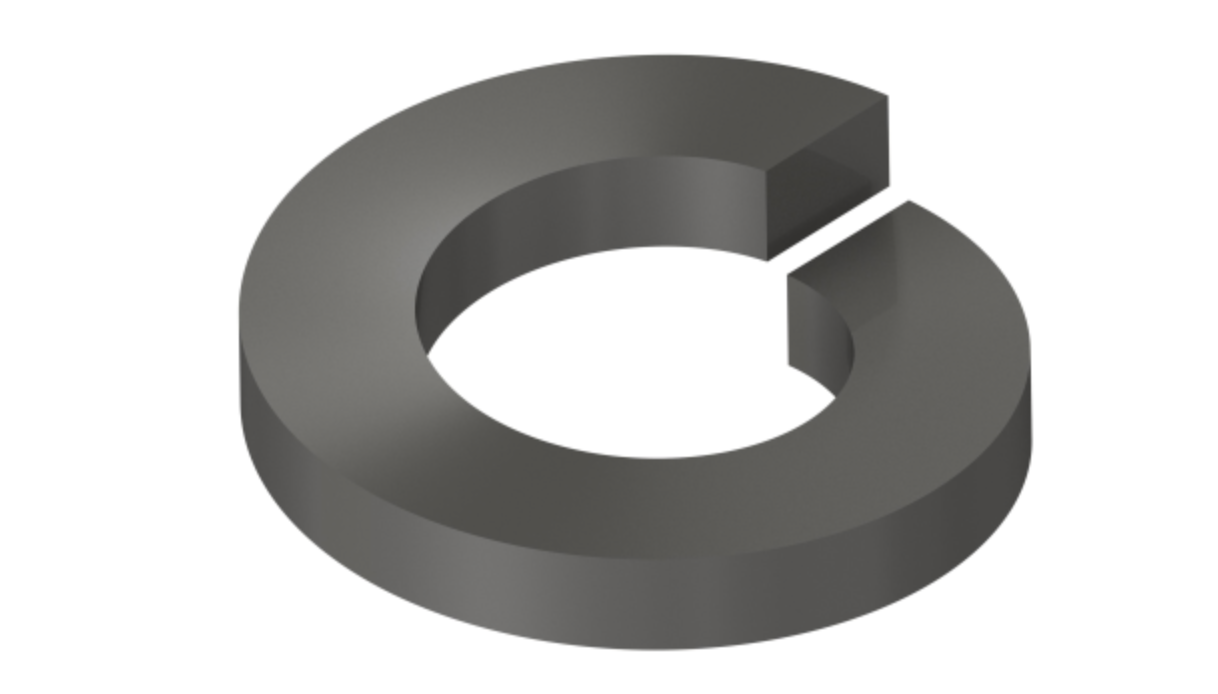

Representative image of Patriot Products Lock washer, split ring, 3/8 | Part #716620005
Representative image of Patriot Products Lock washer, split ring, 7/16 | Part #704620005

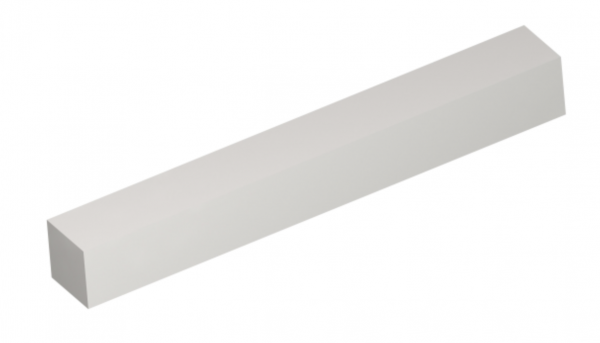

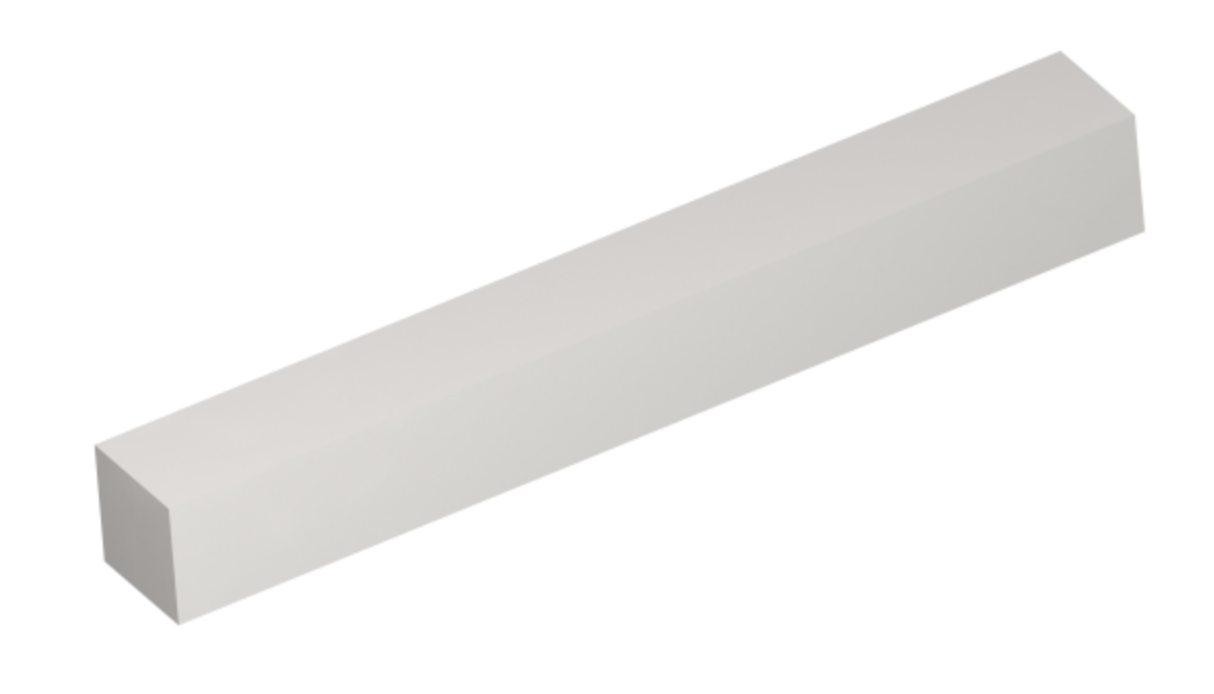

Representative image of Patriot Products Key, 1/4" sq. x 2" | Part #703100005
Product Number: 325000615B
$287.00
Select Quantity:

This is the current replacement rotor kit for Patriot Model CSV-3065B and various older Patriot Gas Wood Chippers.

NOTE: The chipper knives ARE NOT included and must be ordered separately.

This parts kit contains the following:
Part No. Description - Click below on the product descriptions to see product details or to order Qty
325000615 Rotor, 6, 8, 10 hp w/1" bore 1
888000253 HHCS, 3/8-24 x 5 1/2 1
888000078 HHCS, 7/16-20 x 5 1/2 1
716620005 Lock washer, split ring, 3/8 1
704620005 Lock washer, split ring, 7/16 1
703100005 Key, 1/4" sq. x 2" 1
The following components are factory pre-assembled to the rotor.
103009035 Y-hammer 6
204009045 Y-hammer shaft, gas 4
211009075 Spacer A (short, plain) 2
211009055 Spacer B (short, w/hole) 2
265001895 Roll pin sleeve B 2
211009355 Spacer C (long, w/hole) 2
265001905 Roll pin sleeve C 2
703200005 Roll pin, 3/16 x 3/4 4
